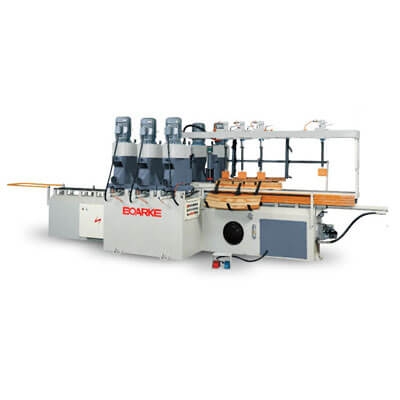

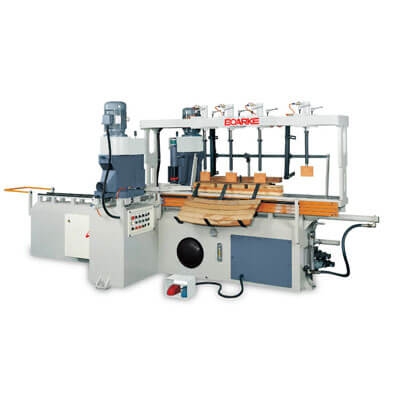

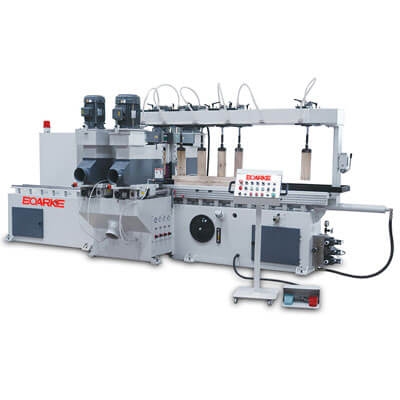

Auto Double Side Copy Shaping Machine

MODEL	PC-H311	PC-H312	PC-H313
WORKING CAPACITY	1500x180x140 mm (LxDxThk.)	1500x180x140 mm (LxDxThk.)	1500x180x140 mm (LxDxThk.)
MAIN SPINDLE POWER	7 1/2 HP x 2	7 1/2 HP x 2 5 HP x 2	7 1/2 HP x 2 5HP x 4
MAIN SPINDLE DIAMETER	40 mm	40 mm	40 mm
HYDRAULIC POWER	3 HP x 1	3 HP x 1	5 HP x 1
REVOLUTION SPEED	8000 - 9600 rpm	9500 rpm	9500 rpm
REQUIRED AIR PRESSURE	6 kg/cm2	6 kg/cm2	6 kg/cm2
MACHINE SIZE	4250 x 2080 x 1950 mm	5000 x 2080 x 1950 mm	5800 x 2080 x 1950 mm
MEASUREMENTS	4380 x 2200 x 2060 mm	5140 x 2200 x 2060 mm	5900 x 2200 x 2060 mm
N.W. / G.W.	2550 / 2890 kgs	2880 / 3290 kgs	3650 / 4000 kgs
