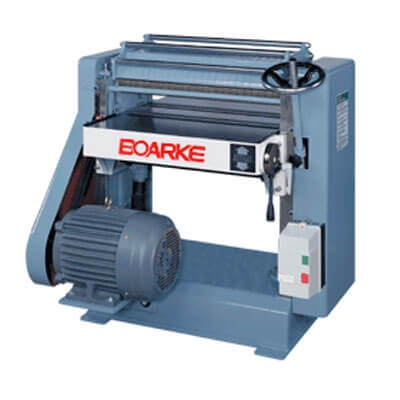

PC-C203
Product Description
proimages/pro/Woodworking_Machine/C203a.jpg

INFEED ROLLER


proimages/pro/Woodworking_Machine/C203b.jpg

QUICK CHANAGES STRAIGHT KNIFE CUTTERHEAD

FEATURES:
  • CONTROL: The control system meets UL and CSA standards.
  • FRAME: Cast iron frame, precision machined.
  • TABLE: Manufactured from high quality FC-25 cast iron with rib reinforcing for perfect alignment and maximum rigidity. Table surface is precision ground for a smooth and accurate feeding effect.
  • CUTTERHEAD: Choice of straight knife, quick change, and spiral cutter-heads are available.
  • INFEED ROLLER: Corrugated, 75mm diameter.
  • OUTFEED ROLLER: Smooth surface, solid type, 56mm diameter.
  • BED ROLLERS: Adjustable from 0 to 0.040" above table.
  • PRESSURE BAR: Cast iron, with spring tension and mounted concentric to cutter-head providing exact tolerance to cutting circle.
  • CHIP BREAKER: Ductile iron, spring loaded, sectional type, with independent 1/4" yield. Sections are mounted on a steel shaft just forward of knife-cutting circle.
MODELPC-C203
Table area 21"x27-1/4"
(533x692mm)
Cutterhead Diameter 3" (75mm)
Cutting circle 3-1/4" (82.5mm)
Cutterhead speed Spiral 5500 rpm
Stright 4500 rpm
Spiral raw numbers 6
Number of straight knives 3
Knife insert size 15 x 15 x 2.5mm
Feed rollers 3" (75mm)
Table rollers 2-3/8" (60mm)
Range of feed speed (VS) 36 ft/min
Stock thickness range 0.079"-7.874"
Maximum depth of cut 1/4" (6.3mm)
Maximum width of stock 20" (508mm)
Cutterhead motor 5 HP
Feed drive motor 1 HP
Net weight 400 kgs
Gross weight 450 kgs
Packing dimensions 40"x38"x44"
