PC-C: Jointer / Planer / Wood Moulding Machine

AUTOMATIC PLANER

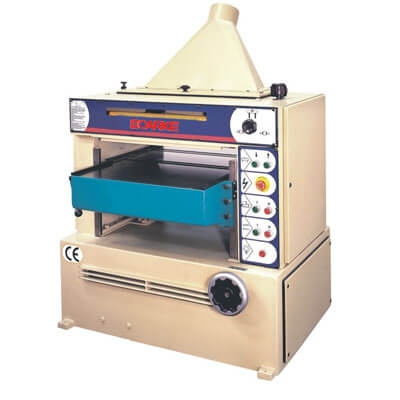

PC-C232 Automatic Wood Planer

PC-C232 Automatic Wood Planer

PC-C232 Automatic Wood Planer
PC-C232
Product Description
proimages/pro/Woodworking_Machine/C231b.jpg
VARIABLE FEED SPEED
proimages/pro/Woodworking_Machine/C231c.jpg
MICROMETRICAL ADJUSTMENT FOR TABLE ELEVATION
Inquiry
FEATURES:
MODELPC-C232
Toble area (L*W*H) 641*902mm(25¼ * 35½)in
Max. planing width 609mm(24)in
Max. planing thickness 230mm(9)in
Min. planing thickness 3mm(1/8)in
Max. cutting power 8mm(5/16)in
Min. planing length 254mm(10)in
Cutterhead dia. 117mm(4 5/8)in
Cutterhead speed x 5000(4)RPM
Feeding speed 6~12m/min
Motor 10HP
N.W. 800kgs
G.W. 900kgs
Packing size (L*W*H) 1194*1016*1170 mm(47*40*46)in
　 43.5 cuft
Table vertical motor ½HP
Dust outlet 5Inch
Feeding motor 1HP
