DOUBLE END TENONER MACHINE

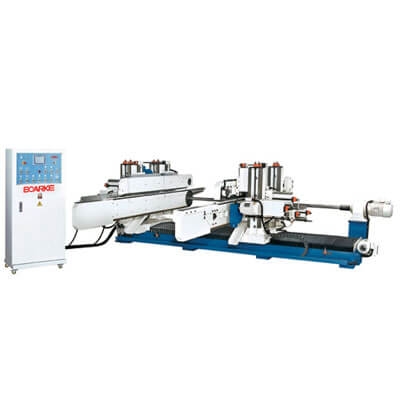

PC-F101 Double End Tenoners Machine

PC-F101 Double End Tenoners Machine

PC-F101 Double End Tenoners Machine
PC-F101
Product Description

Touch Screen:

Width is set through the tough screen combined with a PLC to ensure high positioning accuracy.

Feed Chaintrack:

Equipped with needle bearings to increase wear-resistance. Choice of rubber or phenol surfaces.

Precision Linear Guideway:

The movable side of the DET is mounted on precision linear guideways to ensure accuracy.

Scoring Saw System:

Capable of swivelling to angles of up to ±90°.

Optional saw jumping function.

Main Saw System:

Capable of swivelling to angles of up to ±90°.

First Moulding System:

Capable of swiveling to angles of up to ±90°.

Optional cutter jumping function.

Powered by high frequency motor.

Second Moulding System:

Capable of swiveling to angles of up to ±90°.

Powered by high frequency motors.

Inquiry
FEATURES:
MODELPC-F101PC-F102PC-F103
Max. working width                            2600 (3000/3600)mm 2000mm 1300mm
Min. working width                            210mm 210mm 210mm
Max. working thickness 120mm 120mm 120mm
Motor horse power 3(5/7.5)hp 3(5/7.5)hp 3(5/7.5)hp
Feed speed 5-25m/min 5-25m/min 5-25m/min
Distance between 400(300/200)mm 400(300/200)mm 400(300/200)mm
Motor horse power 1hp 1hp 1hp
Feed speed 2m/min 2m/min 2m/min
Motor horse power 2(3/5/7.5)hp 2(3/5/7.5)hp 2(3/5/7.5)hp
Spindle speed 3450rpm(60Hz) 3450rpm(60Hz) 3450rpm(60Hz)
Spindle diameter 25.4(30)mm 25.4(30)mm 25.4(30)mm
Sawblade diameter 120-305mm 120-305mm 120-305mm
Motor horse power 5(7.5/10)hp 5(7.5/10)hp 5(7.5/10)hp
Spindle speed 3450rpm(60Hz) 3450rpm(60Hz) 3450rpm(60Hz)
Spindle diameter 25.4(30/40)mm 25.4(30/40)mm 25.4(30/40)mm
Sawblade diameter 205-355mm 205-355mm 205-355mm
Motor horse power 5(7.5/10)hp 5(7.5/10)hp 5(7.5/10)hp
Spindle speed 3000/8000(6000)rpm 3000/8000(6000)rpm 3000/8000(6000)rpm
Spindle diameter 40mm 40mm 40mm
Cutter diameter 180-210(120-160)mm 180-210(120-160)mm 180-210(120-160)mm
Motor horse power 5(7.5/10)hp 5(7.5/10)hp 5(7.5/10)hp
Spindle speed 3000/8000(6000)rpm 3000/8000(6000)rpm 3000/8000(6000)rpm
   Spindle diameter 40mm 40mm 40mm
   Cutter diameter 180-210(120-160)mm 180-210(120-160)mm 180-210(120-160)mm
   N.W. 4600kg 4200kg 3800kg
   G.W. 5350kg 5000kg 4500kg
   Machine size 4700x3960x1470mm 4100x3960x1470mm 3500x3960x1470mm
   Packing size 4900x2280x1750mm 4300x2280x1750mm 3700x2280x1750mm
