DOUBLE SIDED PLANER SANDER

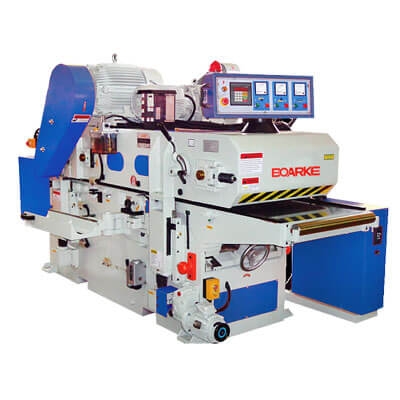

PC-C414 Double Sided Planning Sander

PC-C414 Double Sided Planning Sander

PC-C414 Double Sided Planning Sander
PC-C414
Inquiry
FEATURES:
  • The four table rollers provide superior feeding performance
  • Standard Y-delta motor starting
  • Quick belt change for bottom cutterhead
  • Automatic lubrication for feeding chain
  • Automatic lubricator provides convenient lubrication to caterpillar chain slideways
  • An air wrench is applied for removing or installing knives and saves knife change time.
  • The upper and lower cutter heads are spiral cutter heads
  • The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance
  • The dovetailed slideways on the table elevation assure outstanding rigidity and stability
  • Sectional infeed rollers
  • Maximum cutting width up to 1,020mm
MODELPC-C414
MAX.WORKING WIDTH 966mm(38")
MAX.WORKING THICKNESS 200mm(8")
MIN.WORKING THICKNESS 10mm
MIN.WORKING LENGTH 340mm(13-3/8")
TABLE AREA 1042x2870mm(41"x113")
KNIFE SIZES 15x15x2.5mm
CUTTERHEAD DIAMETER ∮130mm
NUMBER OF SPIRAL KNIFE 6Tx240pcsx5sets
CUTTERHEAD SPEED 4000 R.P.M.
FEED SPEED 8~22M/min
TOP CUTTER HEAD MOTOR(OPT. 20HP) 30HP
BOTTOM CUTTER HEAD MOTOR(OPT.15HP) 25HP
FEEDING MOTOR  7.5HP
ELEVATION MOTOR  1HP
AIR SUCTION 6"x4holes
MACHINE DIM. 3090x1750x1820mm
PACJKING DIM 3190x1830x1870mm
N.W. 4700kgs
G.W. 5200kgs
