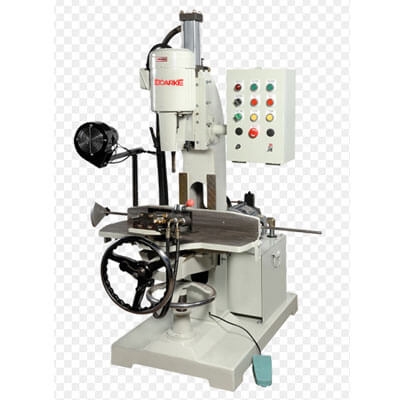

PC-F604
FEATURES:
MODELPC-F604
Chisel Range 1/4" to 1"
Table 14"×27-1/2"
Table Cross Traverse 5"
Table Longitudinal Traverse 18"
Table Vertical Traverse 12"
Head Drive Hydraulic
Clamp Drive Hydraulic
Chuck Capacity 1-1/8"
Spindle Speed 2800rpm/50HZ
3400rpm/60HZ
Maximum Stock Width 8"
Maximum Mortising Depth 4"
Head Motor 2HP
Hydraulic Pump Motor 2HP
New Weight 380kg
Gross Weight 460kg
Packing Dimension(L×W×H) 137 × 100 × 185 cm
