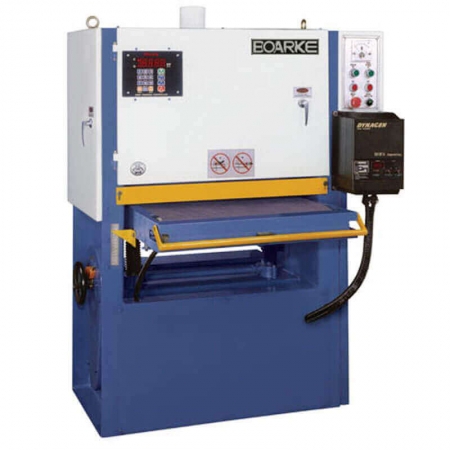

BKM-25B Panel Sander

BKM-25B Panel Sander

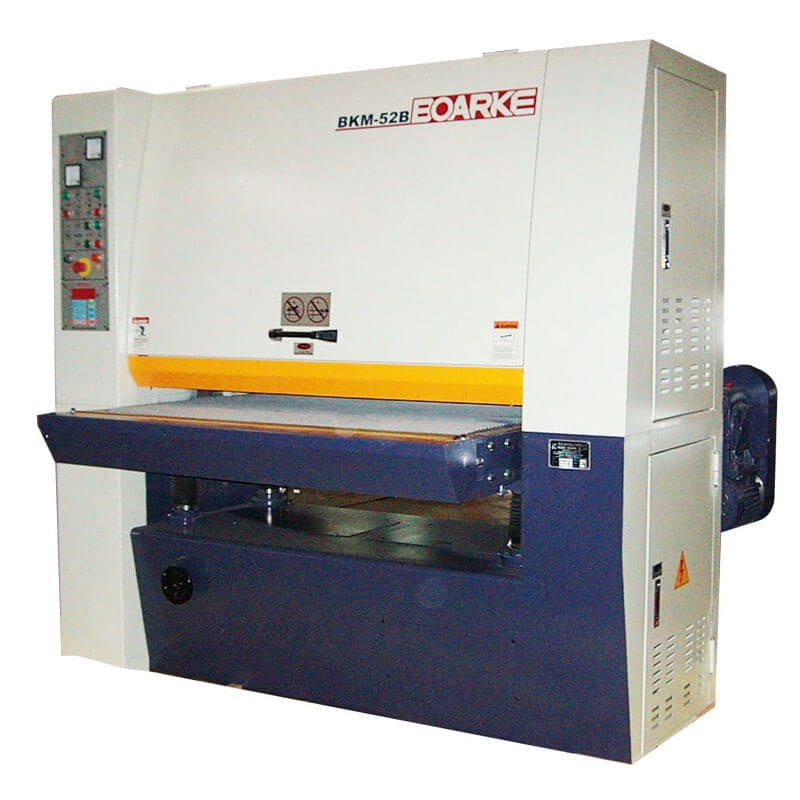

BKM-52B Panel Sander

BKM-52B Panel Sander

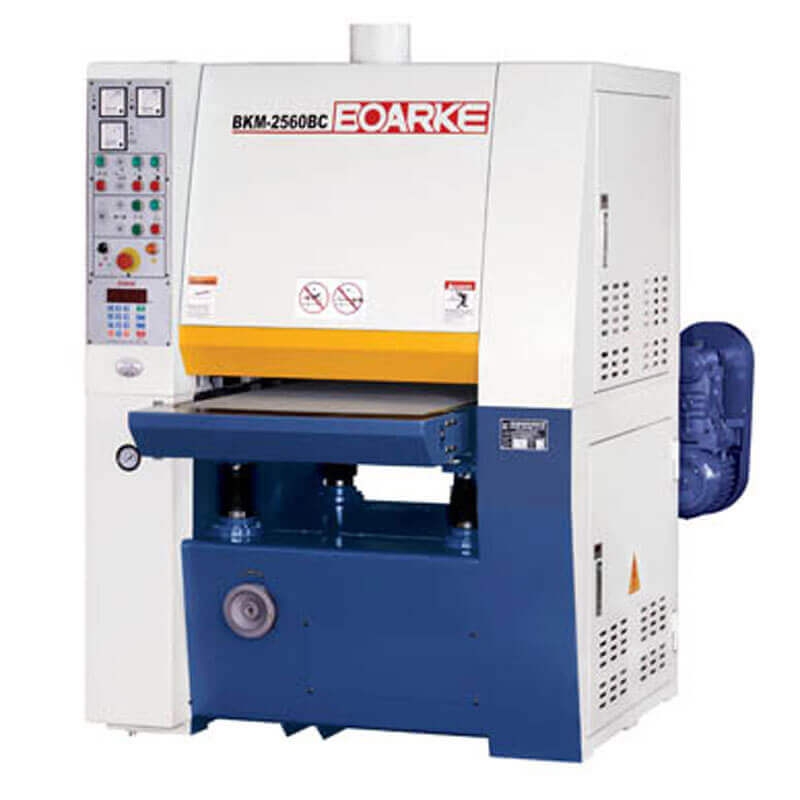

BKM-2560BC Panel Sander

BKM-2560BC Panel Sander

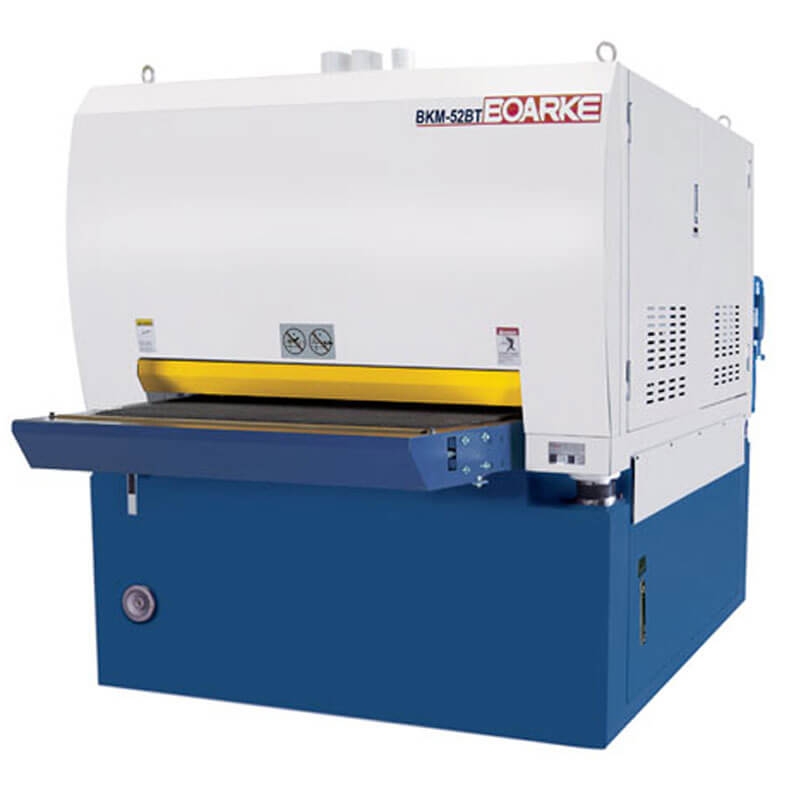

BKM-52BT Panel Sander

BKM-52BT Panel Sander

BKM-25B Panel Sander
BKM-52B Panel Sander
BKM-2560BC Panel Sander
BKM-52BT Panel Sander
sander-5
Product Description
proimages/pro/Sander_Machine/1-01.jpg
 B Type
proimages/pro/Sander_Machine/5-1.jpg
C Type
proimages/pro/Sander_Machine/5-2.jpg
The Roller for polishing function
Inquiry
FEATURES:

BOARKE lacquered panel sander uses a specially designed sponge drum is used to avoid damage to the primer and make the sanding surface smooth. The panel cleaning brush roller with an exhaust hood is equipped at the outer end of the machine, to remove dust from the finished product, and to provide the best-valued panel sander for the customers.


  • Specially designed sponge drum, which features floating sanding performance for variations in the work piece thickness.
    Extremely fine sanding quality is assured.
  • The cleaning device of belt blowing is mounted over the idle roller to clean dust on the sanding belt.
  • Panel cleaning brush is located over the out feed conveyor to remove the dust on panels after sanding.
  • Frequency inverter provides variable sanding belt speed.
  • Automatic machine stop in the event of air failure or sanding belt breakage.
  • BKM-**BC for automatic production lines (Table height is fixed).
MODELBKM-25BBKM-2560BBKM-37BBKM-52BBKM-2560BCBKM-37BCBKM-52BCBKM-25BTBKM-37BTBKM-52BT
Max. working width 24" 24" 36" 50" 24" 36" 50" 24" 36" 50"
Max. working thickness 5" 5" 5" 5" 5" 5" 5" 5" 5" 5"
Main motor (standard) 5HP 7½HP 7½HP 20HP 7½,5HP 10,7½HP 25,20HP 7½HP 10HP 15HP
Main motor (optional) 7½HP 10HP 10HP 25HP 10,7½HP 15,10HP 30,25HP 　 　 　
Feed motor 1HP 1HP 2HP 2HP 2HP 2HP 3HP 2HP 2HP 2HP
Table hoist motor ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP 1HP
Feed speed selectable range (m/min) 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5%
Sanding belt size 25"x48" 25"x60" 37"x60" 51"x75" 25"x60" 37"x60" 51"x75" 25"x60" 37"x60" 51"x75"
Working pressure (kg/cm²) 6 6 6 6 6 6 6 6 6 6
Brush motor ¼HP 1/4HP 1/2HP 1HP 1/4HP 1/2HP 1HP 　 　 　
Net weight (kgs) 620 700 900 2200 1000 1400 2800 1080 1280 2700
Gross weight (kgs) 770 850 1150 2400 1250 1550 3150 1300 1550 3100
Machine size (LxWxH) cm 139x120x160 165x135x175 165x165x175 165x210x200 200x140x175 195x163x175 237x210x203 162x132x182 200x175x191 230x166x230
Packing size (LxWxH) cm 148x130x179 170x140x185 170x170x185 170x215x215 208x148x195 205x173x190 243x216x225 172x142x202 210x185x201 252x180x250
