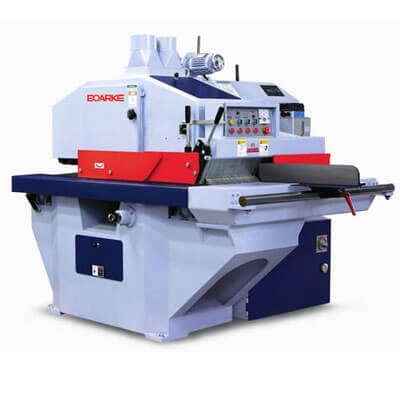

PC-B521
FEATURES:
  • Ideal for furniture factories, material preparation factories, and saw mill factories
  • Large throat depth: 760 mm from chain to arm.
  • Pressing rolls are installed on both sides, hold work-piece stably and evenly.
  • Whole Sawing head has the function for lifting up and down.
  • The machine has the front safe guard during thin plates cutting.
  • The pressing plate makes the work-piece firm.
  • Chain: Feeding keeps straight-line sawing.
  • Variable feed speed is for the cutting of a variety of stock, hard or soft, thick or thin material.
MODELPC-B521
Cutting thickness 10~30mm
Max.cutting width 320mm
Min.infeed width 760mm
Min.length of cut 600mm
Feed speed(Variable) 9~36M/min
Feed track width 335mm
Sawblade keyway 20mm(W)x2
Distance between keyways 80mm
Sawblade diameter / cutting thickness ø305(10~80),ø355(10~105),ø405(10~130)
Sawblade spindle diameter ø55mm
Sleeve diameter(Sawblade bore diameter) ø70mm
Spacing collar diameter / (I.D./O.D.) ø70 / ø95mm
Spindle speed 3200RPM
Saw diive motor 50HP(30HP,60HP,75HP opt.)
Feed motor 2HP(3HP opt.)
Head elevation motor 1/4HP
Dust hood outlet diameter ø150mm(6")x2
Table area(LxW) 1900x900mm
Table height from floor 850mm
Machine dimensions(LxWxH) 2400x1500x1800mm
Packing dimensions(LxWxH) 2300x1800x2100mm
Net weight(Approx) 2450kgs
Gross weight(LxWxH) 2650kgs
