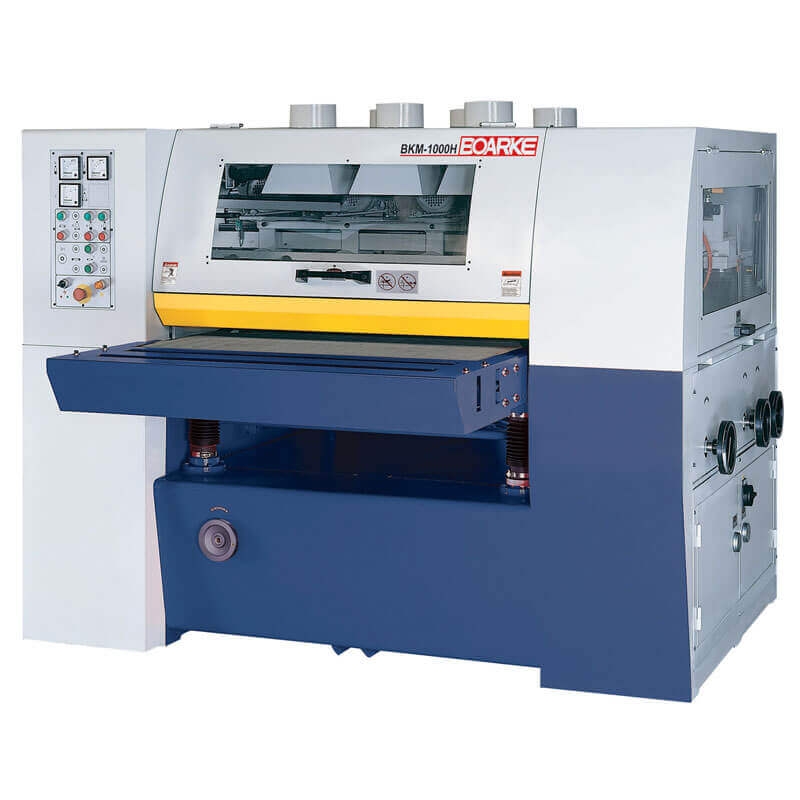

BKM-1000H Wood Denibbing Machine

BKM-1000H Wood Denibbing Machine

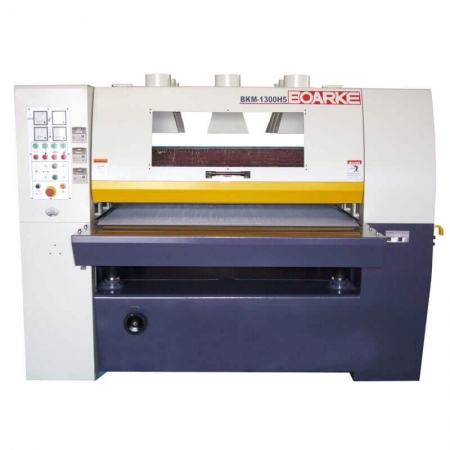

BKM-1300H5 Wood Denibbing Machine

BKM-1300H5 Wood Denibbing Machine

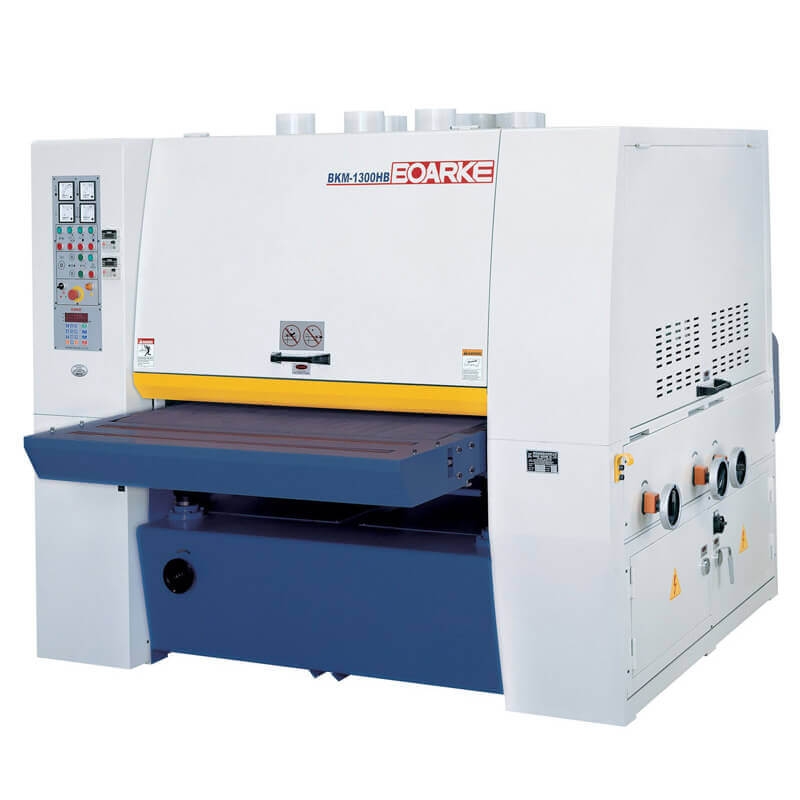

BKM-1300HB Wood Denibbing Machine

BKM-1300HB Wood Denibbing Machine

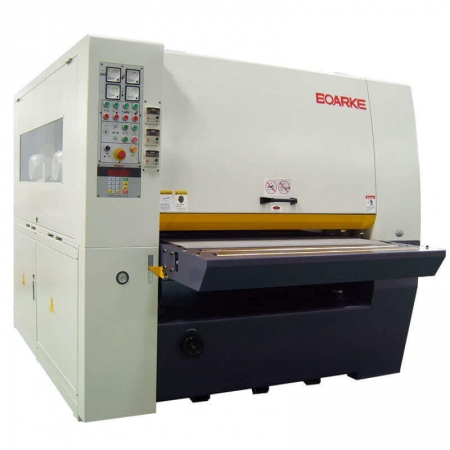

BKM-1300HB4 Wood Denibbing Machine

BKM-1300HB4 Wood Denibbing Machine

BKM-1000H Wood Denibbing Machine
BKM-1300H5 Wood Denibbing Machine
BKM-1300HB Wood Denibbing Machine
BKM-1300HB4 Wood Denibbing Machine
sander-6
Product Description
proimages/pro/Sander_Machine/6-3.jpg
Irregular Surface Sanding
proimages/pro/Sander_Machine/6-1.jpg
Standard Accessories
proimages/pro/Sander_Machine/6-2.jpg
Optional
Inquiry
FEATURES:

Wood Denibbing Machine with the patented design is suitable for flat and irregular surface sanding, as well as primer treatment. Sanding head can be customized according to customers' requirements.

EXCLUSIVE PANEL PRESSURE DEVICE
The panel pressure device is specially designed to handle small pieces of stock. It requires no Vacuum adsorption, saving space and cost.

SIMULTANEOUS LONGITUDINAL AND CROSS SANDING
The advance design consists of 2 crosswise spindles and 4-5 short longitudinal spindles with reciprocating movement.
This permits crosswise and longitudinal sanding to be performed simultaneously. Any types of irregular surfaces can be sanded easily and quickly.

CONVENIENT SANDING BELT REPLACEMENT
Simply loosen some screws, the sanding brush roller can be conveniently and quickly replaced.

PRECISION BALL SCREWS
The conveyor table is supported by precision ball screws, providing extremely smooth and accurate table elevation.

Various sanding head configurations can be chosen and assembled optionally:


  • HB Type

  • HBE Type

  • H Type

  • H1 Type

  • HA3 Type

  • HA3A Type

  • H3B Type

  • H5 Type

  • H5A Type

  • HA4 Type

  • HA Type

  • HA3 Type

  • HA4-1 Type

  • HA5 Type
MODELBKM-1000HBKM-1300HBKM-1000HBBKM-1300HBBKM-1000HBEBKM-1300HBE
Max. working width (mm) 900 1270 900 1270 900 1270
Max. working thickness (mm) 150 150 150 150 150 150
Main motor 　 　 15HP 20HP 15HP 20HP
Sanding belt size 　 　 37"x75" 51"x75" 37"x75" 51"x75"
Lateral spindle motor 2HPx2 3HPx2 2HPx2 3HPx2 2HPx2 3HPx2
Vertical spindle motor ½HPx4 ½HPx5 ½HPx4 ½HPx5 　 　
Feed motor 2HP 2HP 2HP 2HP 2HP 2HP
Brush motor 　 　 ½HP 1HP ½HP 1HP
Table hoist motor ½HP ½HP ½HP ½HP ½HP ½HP
Feed speed selectable range (m/min) 3-12±5% 3-12±5% 3-12±5% 3-12±5% 3-12±5% 3-12±5%
Diameter of sand brush (mm) 305 305 305 305 305 305
Working pressure (kg/cm) 6 6 6 6 6 6
Net weight (kgs) 2280 2800 3400 3900 3100 3600
Gross weight (kgs) 2470 3300 4000 4500 3600 4100
Machine size (LxWxH) cm 280x220x166 280x250x166 315x220x203 315x250x203 275x220x203 275x250x203
Packing size (LxWxH) cm 285x225x188 285x255x188(平板櫃) 318x225x223 325x256x223(平板櫃) 278x225x223 280x255x223(平板櫃)
