PC-A: Band Saw Machine

Vertical Band Saw

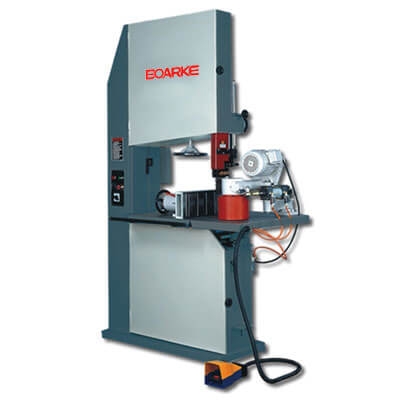

PC-A603 Industrial Vertical Band Saw

PC-A603 Industrial Vertical Band Saw

PC-A603 Industrial Vertical Band Saw
PC-A603
Product Description
proimages/pro/Woodworking_Machine/A603a.jpg

CONVENIENT TABLE TILTING

Warm gear trunnion allows for effortless tilting of the table.


proimages/pro/Woodworking_Machine/A603b.jpg

BLADE ADJUSTMENT MECHANISM

Blade tension can be conveniently adjusted by hand wheel.


proimages/pro/Woodworking_Machine/A603c.jpg

PNEUMATIC POWER FEEDER (OPTIONAL)

Inquiry
FEATURES:
ModelPC-A603PC-A604PC-A605
Saw Wheel Diameter 600mm(24") 700mm(28") 800mm(32")
Table 800*605mm(31-1/2"*23- 7/8) 1000*700mm(39-3/8"*27-5/8") 1150*800mm(45-1/4"*31- 1/2")
Table Tilting 0°~45° 0°~45° 0°~30°
Throat Capacity 580mm(22-7/8") 678mm(26-3/4") 778mm(30-5/8")
Height Capacity 350mm(13-3/4") 420mm(16-1/2") 390mm(15-3/8")
Width Of Wheel 68mm 75mm 90mm
Blade Speed 710RPM(4458 F.P.M) 600RPM(4396 F.P.M) 600RPM(5024 F.P.M)
Blade Length 4394~4454mm(173"~175- 3/8") 5100~5150mm(200-3/4"~202-3/4") 5485~5515mm(216" ~217-1/8")
Blade Width 75mm(3") 75mm(3") 100mm(4")
Dust Hood Diameter Ø4"*2 Ø4"*2 Ø4"*2
Motor 5HP 7.5HP 15HP
Net Weight 340kg 500kg 665kg
Gross Weight 450kg 650kg 880kg
Machines Size(L*W*H) 1060*800*2070mm 1330*900*2290mm 1500*930*2420mm
