VERTICAL MULTIPLE SPINDLE BORING MACHINE

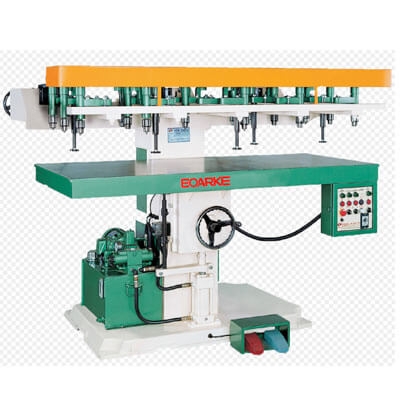

PC-D111 Multiple Spindle Vertical Wood Boring Machines

PC-D111 Multiple Spindle Vertical Wood Boring Machines

PC-D111 Multiple Spindle Vertical Wood Boring Machines
PC-D111
Inquiry
FEATURES:
  • The machine base is manufactured from high quality cast iron. (FC 25-30)
  • A hydraulically operated model.
  • Hydraulic control system.
  • Multiple spindles can be easily adjusted for various boring positions.
  • Easy operation and minimum maintenance.
MODELPC-D111PC-D112PC-D113PC-D114PC-D115PC-D116
Spindle motor 2HP×2 2HP×2 2HP×3 2HP×3 2HP×3 2HP×3
Spindle speed 50HZ-3700R.P.M. 60HZ-4200R.P.M. 50HZ-3700R.P.M. 60HZ-4200R.P.M. 50HZ-3700R.P.M. 60HZ-4200R.P.M. 50HZ-3700R.P.M. 60HZ-4200R.P.M. 50HZ-3700R.P.M. 60HZ-4200R.P.M. 50HZ-3700R.P.M. 60HZ-4200R.P.M.
Number of spindle 10 10 16 16 16 16
Number of idler wheel 5 5 8 8 8 8
Hold down clamp 4 4 5 5 6 5
Table area 600×1220 760×1220 600×1830 760×1830 600×2400 900×1830
Hyd. pump motor 2HP 2HP 2HP 2HP 2HP 2HP
Max. table travel 100mm 100mm 100mm 100mm 100mm 100mm
Min. boring depth 90mm 90mm 90mm 90mm 90mm 90mm
Min. distance between drills 50mm 50mm 50mm 50mm 50mm 50mm
Machine size 1350×1400×1630 1350×1560×1630 1950×1400×1630 1950×1560×1630  2550×1400×1630 1950×1710×1630
Packing size 1500×1500×1800 1500×1660×1800 2100×1500×1800 2100×1660×1800 2700×1500×1800 2100×1810×1800
N.W. 950kg 1050kg 1150kg 1250KG 1300KG 1300KG
G.W. 1070kg 1200kg 1350kg 1470KG 1520KG 1520KG
