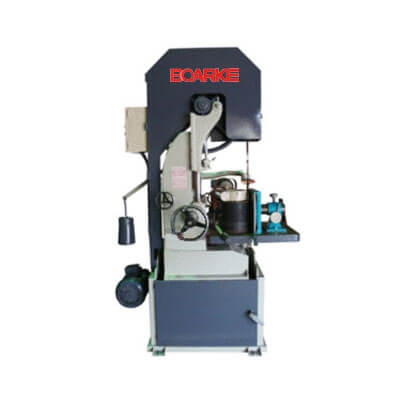

Band Resaw Machine (PC Series)

The power of motor of feed wheel is 1HP.
Saw blade tension adjustment by a counter-balance weight providing accurate tension of saw blade.
Cast iron saw wheel, precisely balanced for 　smooth and accurate cutting.
Massive frame, rib reinforced inside assure 　permanent rigidity.
Type PC-A201 & PC-A202 can move if necessary.

MODEL		PC-A201	PC-A202	PC-A203	PC-A204
Wheel diameter & width mm		710×90	760×90	910×90	1070×114
Wheel diameter & width mm		710×90	760×90	910×90	1070×114
Saw blade size	Width mm	100	100	100	127
	Length mm	5220 ~ 5290	5700 ~ 5770	6310 ~ 6350	7700 ~ 7800
	Thickness	#20 ~ #22	#20 ~ #22	#20 ~ #22	#18 ~ #20
Max. cutting diameter mm		620	660	750	880
Distance between saw & frame mm		355	370	430	505
Max. distance between saw & gauge mm		100	120	200	275
Max. distance between saw & gauge mm		100	120	200	275
Wheel allowable speed rpm		600 ~ 700	600 ~ 700	700 ~ 900	700 ~ 900
Motor power HP		7 1/2 ~ 15	7 1/2 ~ 15	10 ~ 25	15 ~ 30
Net weigh kg		900	900	1200	1700
Gross weight kg		1200	1200	1500	2200
Packing dimensions m		1.6×1.1×2.3	1.6×1.1×2.3	1.5×1.2×1.6	2.3×1.6×2.1
