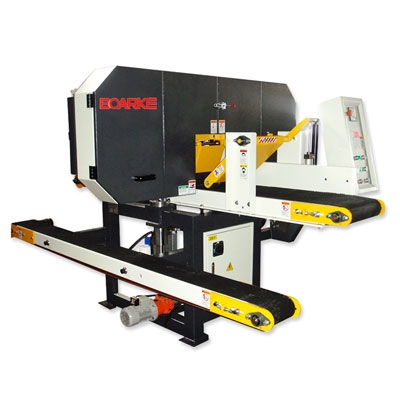

Product Description

Precision saw wheel elevation

The saw wheel elevation is transmitted by precision ball screw, providing minimum backlash to achieve accurate cutting.


Rubber pressure rollers

The infeed &outfeed pressure rollers have individual air cylinder to control.

It can press workpiece well and pressing pressure can be adjusted to suit wood thickness.


Blade tension system

The blade tension is controlled by hydraulic unit. It can provide pressure to compensate blade tension when hydraulic pressure drops.

  • Digital thickness readout for quick and accurate saw blade positioning.
  • Return conveyor provides convenience for repetitive cutting.
  • Variable speed hydraulically driven feed and return conveyor.
  • The pressure wheel is air loaded for quick and convenient pressure regulation.
  • Powered saw wheel elevation.
  • Automatic hydraulic blade tension control and indicator.
  • Lifting wheel guard.
  • Hinged wheel cover.
Max workpiece size (W x H)  400mm(W) x 250mm(H)
Distance from blade to conveyor table 4mm
Conveyor belt size 385mm x 5480mm
Saw wheel diameter Ø 28" x 1"(W)
Feed speed 4~15m/min
Saw blade size (L x W x T) 4570 x 27 x 0.90 mm (180" x 1")
Saw wheel motor 30HP
Hydraulic system motor In-feed: OMP250 / Out-feed: OMP160
Gear box motor 1/4HP
Hydraulic pressure 55 kgs/cm2
Dust hood diameter Ø 4" x 2
Machine weight 1700 kgs
Packing dimensions 2870 x 2260 x 2050 mm
Optional Inverter
