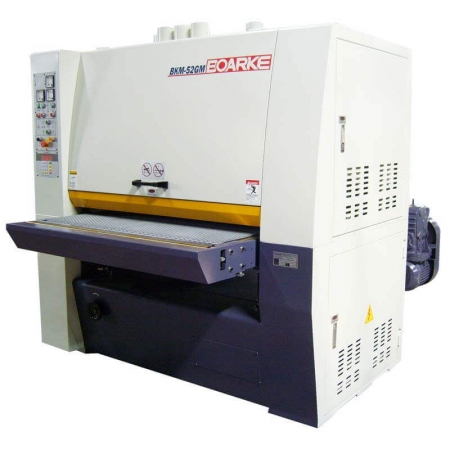

BKM-52GM Precision Belt Sander

BKM-52GM Precision Belt Sander

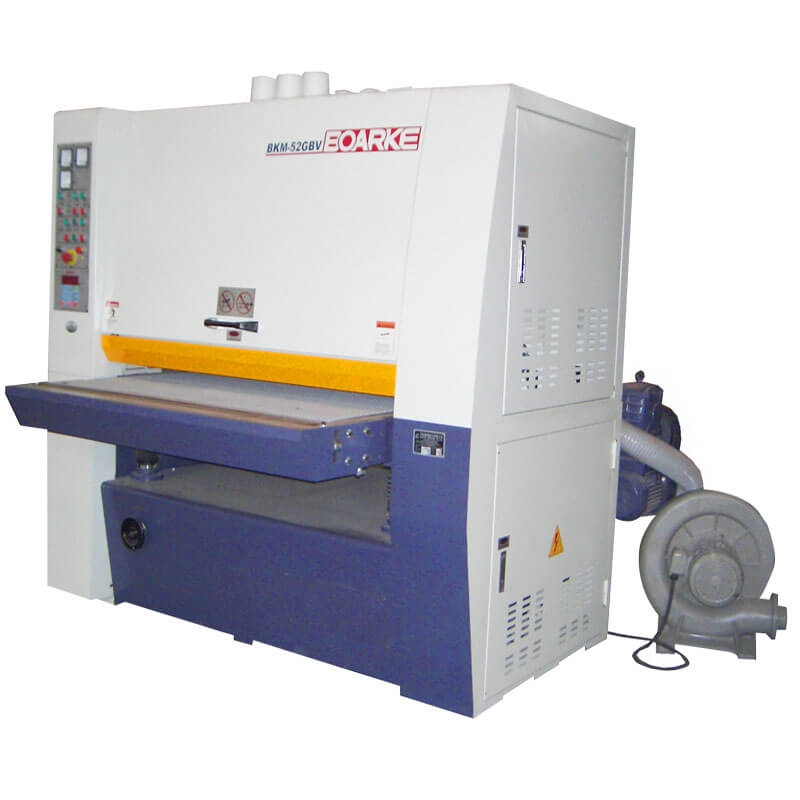

BKM-52GBV Precision Belt Sander

BKM-52GBV Precision Belt Sander

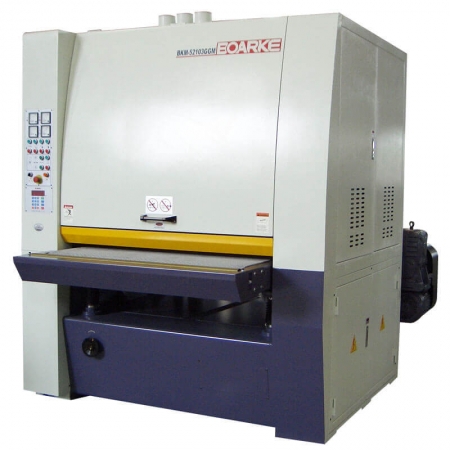

BKM-52103GGM Precision Belt Sander

BKM-52103GGM Precision Belt Sander

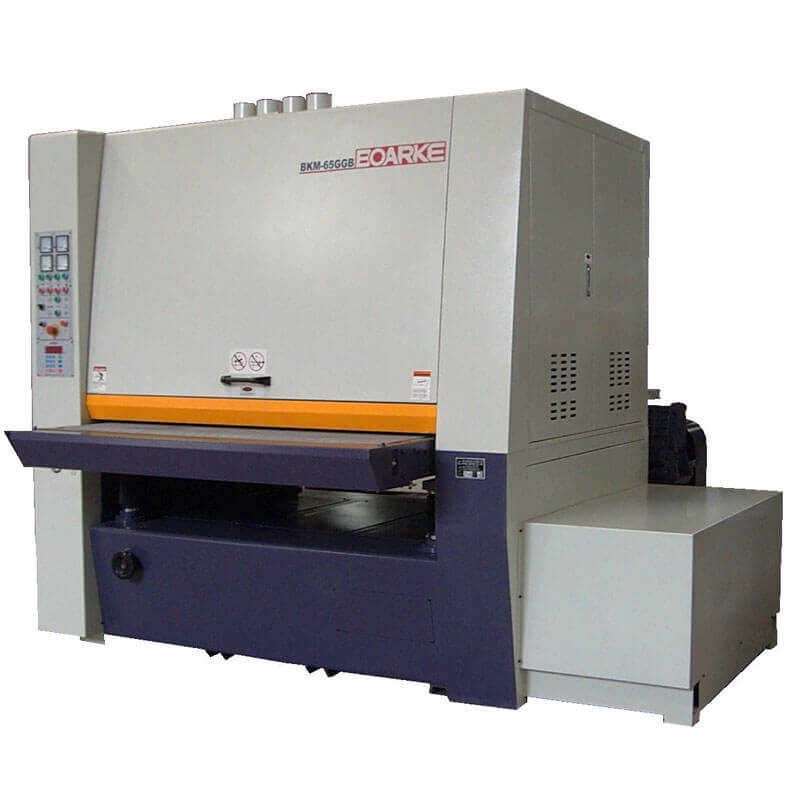

BKM-65GGB Precision Belt Sander

BKM-65GGB Precision Belt Sander

BKM-52GM Precision Belt Sander
BKM-52GBV Precision Belt Sander
BKM-52103GGM Precision Belt Sander
BKM-65GGB Precision Belt Sander
sander-4
Product Description

proimages/pro/Sander_Machine/1-01.jpg

G Type
proimages/pro/Sander_Machine/1-02.jpg
M Type
proimages/pro/Sander_Machine/1-03.jpg
GM Type
proimages/pro/Sander_Machine/1-05.jpg
GB Type
proimages/pro/Sander_Machine/1-04.jpg
GGM Type
Inquiry
FEATURES:

A number of unique designs offer a variety of sanding patterns that can be quickly adjusted for different workpieces to meet customers’ needs of sanding.


  • Computerized table-elevation.
  • Precise digital readout for the opening between the conveyor table and contact roller.
  • The contact roller is rubber coated and dynamically balanced.
  • Photoelectric cell controlled sanding belt tracking.
  • Body activated emergency stop bar.
  • Automatic machine stop in the event of air failure or sanding belt breakage.
  • Quick replace sanding belt device.
  • The cleaning device of belt blowing is mounted over the idle roller to clean dust on the sanding belt.
  • All kind of machines are approved by CE safety regulation.
  • This device can easily adjust the shaping roller elevating up and down.
MODELBKM-25MBKM-37MBKM-43MBKM-52MBKM-65MBKM-25GMBKM-37GMBKM-43GMBKM-52GMBKM-65GMBKM-25GBBKM-37GBBKM-43GBBKM-52GBBKM-65GBBKM-25GGMBKM-37GGMBKM-43GGMBKM-52GGMBKM-65GGM
Max. working width 24" 36" 42" 50" 62" 24" 36" 42" 50" 62" 24" 36" 42" 50" 62" 24" 36" 42" 50" 62"
Max. working thickness 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5" 5"
Main motor (standard) 10HP 15HP 20HP 25HP 30HP 15、10HP 20、15HP 25、20HP 30、20HP 40、30HP 15、10HP 20、15HP 25、20HP 30、20HP 40、30HP 20、15、10HP 25、20、15HP 30、25、20HP 30、25、20HP 40、30、25HP
Main motor (optional) 20HP 25HP 30HP 30HP 40HP 20、15HP 25、20HP 30、25HP 40、30HP 50、40HP 20、15HP 25、20HP 30、25HP 40、30HP 50、40HP 25、20、15HP 30、25、20HP 40、30、25HP 40、30、25HP 50、40、30HP
Feed motor 2HP 2HP 2HP 2HP 3HP 2HP 2HP 3HP 3HP 5HP 2HP 2HP 3HP 3HP 5HP 3HP 3HP 5HP 5HP 7½HP
Table hoist motor ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP
Feed speed selectable range (m/min) 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5%
Sanding belt size 25"x75" 37"x75" 43"x75" 51"x75" 63"x103" 25"x75" 37"x75" 43"x75" 51"x75" 63"x103" 25"x75" 37"x75" 43"x75" 51"x75" 63"x103" 25"x75" 37"x75" 43"x75" 51"x75" 63"x103"
Working pressure (kg/cm²) 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6
Net weight (kgs) 1400 2000 2350 2500 3000 2200 2600 3100 3300 4700 2200 2600 3100 3300 4700 2850 3750 4200 4500 6300
Gross weight (kgs) 1550 2150 2550 2800 3300 2450 2900 3500 3800 5100 2450 2900 3500 3800 5100 3200 4100 4650 5000 6800
Machine size (LxWxH) cm 164x120x200 164x155x200 164x190x200 180x210x213 164x258x239 197x120x200 197x155x200 197x190x200 197x210x200 217x318x239 197x120x200 197x155x200 197x190x200 197x210x200 217x318x239 230x120x200 230x155x200 230x190x200 270x224x222 276x318x239
Packing size (LxWxH) cm 169x125x215 169x160x224 169x195x215 188x220x220 169x263x250(高櫃) 224x158x224 202x160x224 202x195x215 202x215x215 224x321x257(高櫃) 224x158x224 202x160x224 202x195x215 202x215x215 224x321x257(高櫃) 236x125x224 286x182x224 235x195x215 280x227x227 282x321x270(平板櫃)
