CNC-01
Product Description
proimages/pro/CNC_Machining_Center/11-4.jpg

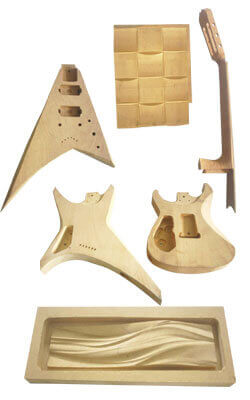

Sample from this machine
FEATURES:
  • Drum type auto tool changer system. Tool magazine capacity: 8 tools (12 tool is optional).
  • Tool change time: only 8 seconds.
  • Two guide ways, double side driving structure, featuring better overall stability.
  • Vacuum table area can be divided into two vacuum zones. When one zone is machining, the other can be fed with material simultaneously. (optional)
  • Complete board sheet can be processed without prior sawing for better production efficiency.
  • Suitable for machining various complex parts in small quantities.Suitable for machining various complex parts in small quantities.
  • Typical applications: cabinet doors, solid wood doors, computer desks and panel type furniture.

Application

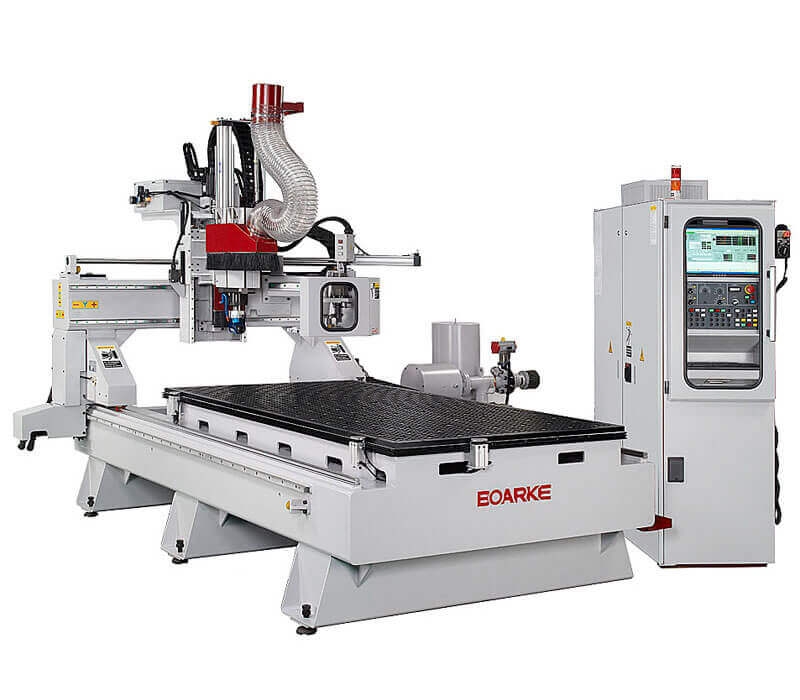

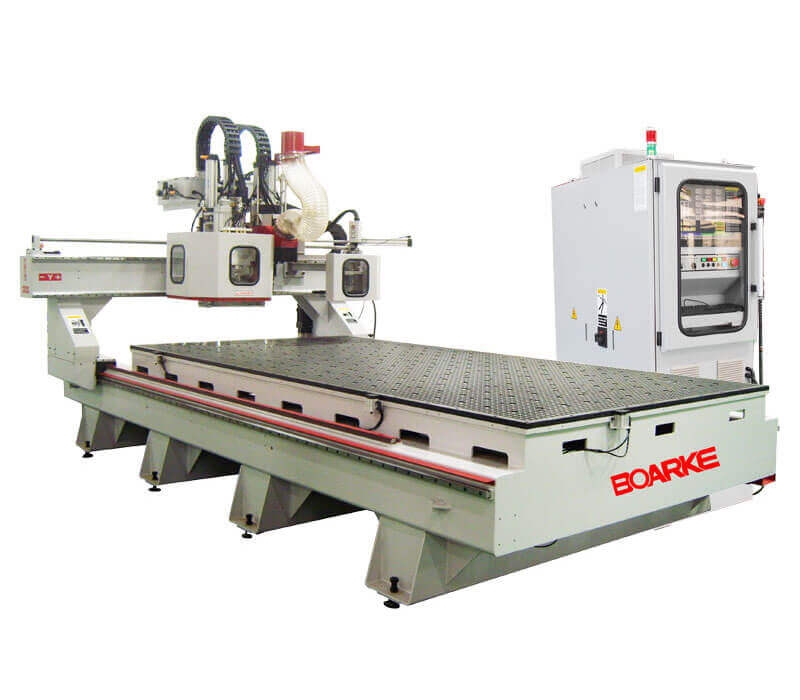

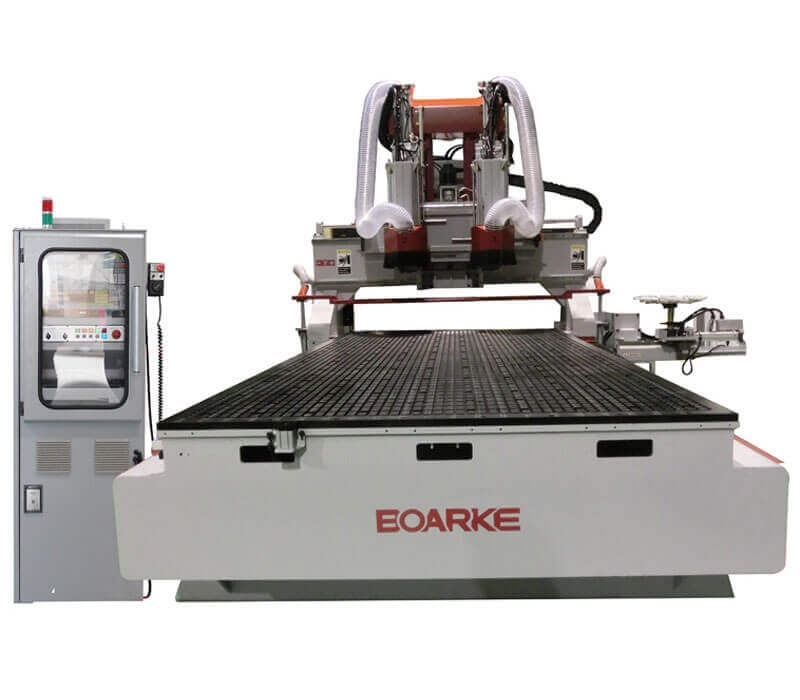

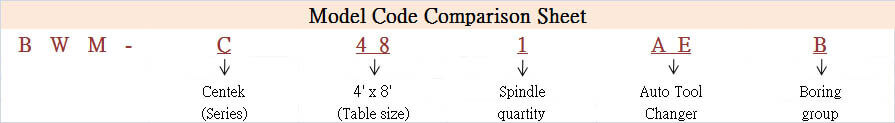

MODELBWM-C481AEBWM-C5101AEBWM-C5121AEBWM-C6121AEB
Max.working area 1220×2440mm 1550×3050mm 1550×3650mm 1830×3650mm
Max.workpiece aheight 200mm 200mm 200mm 200mm
Rapid speed  X/Y axis 60M/min 60M/min 60M/min 60M/min
Rapid speed  Z axis 20M/min 20M/min 20M/min 20M/min
Max.spindl speed 2400RPM 2400RPM 24000RPM 2400RPM
Spindle type ISO Air cooling ISO Air cooling ISO Air cooling ISO Air cooling
Spindle motor 12HP(9KW) 12HP(9KW) 12HP(9KW) 12HP(9KW)
Vacuum pump power 10HP(7.5KW) 15HP(11.25KW) 15HP(11.25KW) 20HP(15KW)
ATC 8plastic grippers on the spindle side (carousel type)
