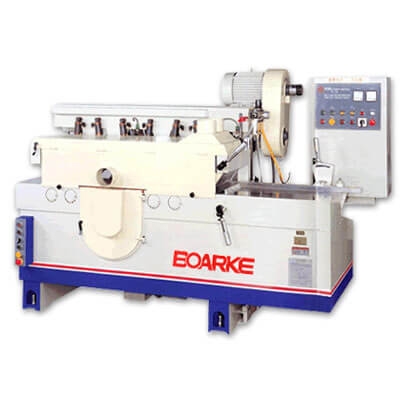

PC-B: Sawing Machine
MULTIPLE RIP SAW
- 6 top and 4 bottom feeding rollers have powerful feeding.
- Built-in alloy working table is by chrome-plated and excellent-wear resistance.
- Full-power feeding wheel is with the strongest feeding force.
- The grooved surface of the feeding wheel effectively improves the feeding effect.
- Large horsepower options: 30, 40, 50, 60, 75 HP.
- Each feeding wheel is universal shaft to drive individually.
- The upper feeding wheel is electrically lifted.
- The saw shaft is electrically lifted.
- Lifting control of feeding wheel and saw shaft are with limit control.
- Feeding is controlled by frequency converter, variable feeding speed(optional).
- Top and bottom anti-kickback fingers are for safety protection.
- Auto power off when the guard is opened.
|Max. thickness of cut||125 mm|
|Max. width of cut||305 mm|
|Saw blade diameter||16" (403mm) 18" (457mm)optional|
|Saw spindle speed||2900 - 3000 RPM|
|Saw spindle diameter||Φ70 mm MLR|
|Feed speed||2.5M - 15 M/min|
|Number of feed rollers||6|
|Number of table rollers||4|
|Table surface area (wide)||355 mm|
|Table surface area (length)||2240 mm|
|Saw spindle motor||30、40、50 、60、75HP(optional)|
|Feed drive motor||5HP|
|Saw spindle elevation motor||1 HP|
|Feed roller elevation motor||1 HP|
|Net weight||2000 KGS|
|Gross weight||2400 KGS|
|Machine size||2721 x 1324 x 1549 mm|
|Packing Dimensions||2921 x1524 x1803mm|
