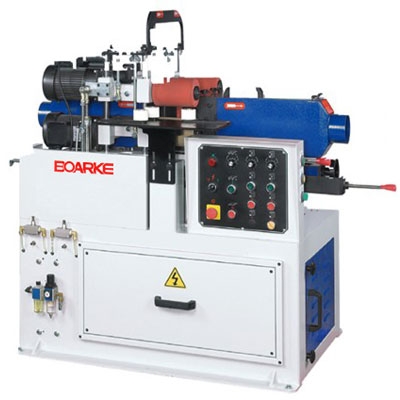

PC-G061
FEATURES:
MODELPC-G061
The way of Feeding Vertical press of rubber rollers
Max.working height 150mm
Max.working width 120mm
Min.working length 350mm
Sanding belt size 6"x40"(12"x40")
Drive motor of sanding belt 2HP x 2(3HP x 2)
Sanding speed By variable speed of frequency inverter
Drive motor of oscillating (25W x 1/36) x 2
Feeding motor (1/4HP x 1/40) x 4
Feeding speed By variable speed of frequency inverter
Machine dimension(LxWxH) 1170 x 800 x 1300 mm
Packing dimension(LxWxH) 1320 x 1000 x1550 mm
Net/Gross weight 400/500 kgs
