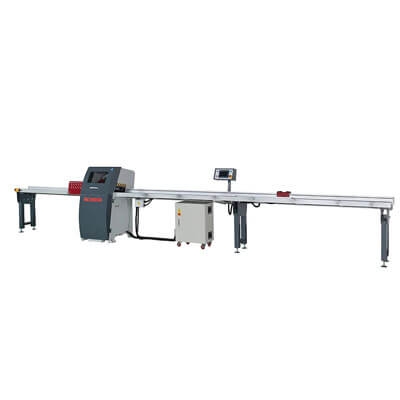

PC-B: Sawing Machine
AUTOMATIC PROGRAMMABLE CUT-OFF SAW
- Advanced Servo Controlled System
- It has the function of picking wood eyes and the function of sizing to meet various cutting needs.
- The processing speed is fast, the stability is high and the accuracy is +/- 0.5mm to overcome the problem of cutting difficulties.
- It is used for finger joining material and mass material preparation.
- Automatically trim the front end of the work piece (not applicable to scribe and saw mode).
- 100 sets of Standard memory of data, (USB connection is available, optional).
- Feeding speed up to 90 M/ min.
- According to the needs of customers, you can choose other lengths of feeding conveyor.
|Cutting capacity (Thickness x Width)||2" x 10", 4" x 8"|
|Saw blade speed||30~90 m/min|
|Saw blade size||ø18"|
|Saw blade speed||3600 rpm (60HZ) / 3200 rpm (50HZ)|
|Saw arbor motor||10HP|
|Table height from floor||920~960mm|
|Working Air Pressure||5~7 kgs / 80 cm²|
|Net weight||420 kgs|
|Gross weight||550 kgs|
|Packing dimensions(LxWxH)||890 x 1080 x 1650mm|
