HORIZONTAL MULTIPLE SPINDLE BORING MACHINE (PNEUMATIC)

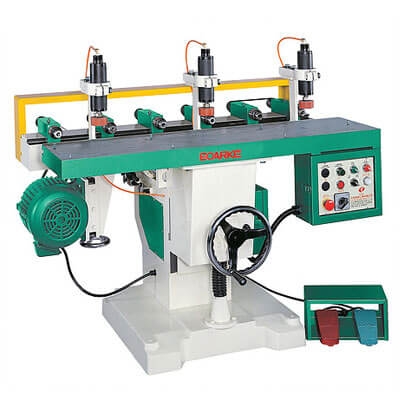

PC-D301 Horizontal Wood Boring Machine

PC-D301 Horizontal Wood Boring Machine

PC-D301 Horizontal Wood Boring Machine
PC-D301
Inquiry
FEATURES:
  • The machine base is manufactured from high quality cast iron. (FC 25-30) Major components and the machine frame are made from high grade cast-iron. Conventional belt tension adjustment.
  • Pneumatic control system.
  • Multiple spindles can be easily adjusted for various boring positions.
  • Easy operation and minimum maintenance.
MODELPC-D301PC-D302PC-D303
H-SPINDLE MOTOR 2HP*1 2HP*2 2HP*2
H-SPINDLE TRAVEL - 100m/m 100m/m
NUMBER OF H-SPINDLE 3 10 10
NUMBER OF IDLER DOWN CLAMP 3 10 10
NUMBER OF HOLD DOWN CLAMP 2 - -
NUMBER OF HOLD   - 4 5
SPINDLE SPEED 50HZ-3700R.P.M. 60HZ-3500R.P.M. 50HZ-3700R.P.M. 60HZ-3500R.P.M. 50HZ-3700R.P.M. 60HZ-3500R.P.M.
MAX.BORING HEIGHT - 90mm 90mm
H-SPINDLE BASIC SIZE 1200mm 1800mmm 2400mm
TABLE SIZE 300*1200mm 300-1800mm 300-2400mm
MACHINE SIZE 1300*1340*1370mm 1880*1240*1200mm 2400*1240*1200mm
PACKING SIZE 1360*1390*1420mm 1980*1480*1350mm 2500*1480*1350mm
N.W. 454kgs 600kg 1000kg
G.W. 500kgs 780kg 1230kg
