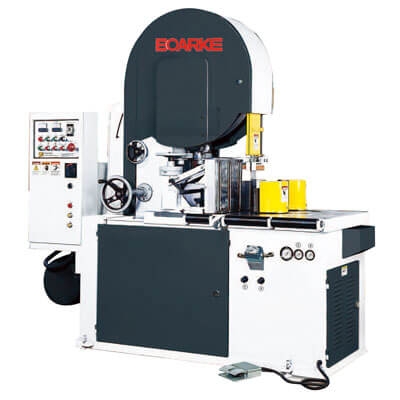

PC-A702
Product Description

◎ Powered feed roller combined with automatic clamping and unclamping of work-piece for operational convenience.

◎ Feed speed is variable.

◎ Rollers on both in-feed and out-feed end of table gives convenient resawing operation.



◎ Easy to install, which requires no further construction job.

◎ The heavy duty saw wheel is dynamically balanced for smooth running.

◎ Saw wheels run on precision bearing.


◎ Fence setting is fast and convenient to make.

◎ The entire fence assembly is ruggedly constructed featuring high rigidity and durability.


◎ Blade tension can be accurately read from the rule gauge.


◎ Automatic lubricator provides lubrication and cooling for the sawblade. It also reduces considerable noise level.

FEATURES:
  • Feed roller is driven by hydraulic power (Variable speed).
  • Feed roller is driven by hydraulic system, making the machine ideal for cutting various wood materials.
  • Feed roller movement is actuated by air/hydraulic combination cylinder.
  • Feed roller can be quickly changed to fully automatic or semi-automatic mode. This feature provides added convenience for cutting various sizes of wood.
  • Powered elevation of upper wheel permits convenient blade replacement. A handwheel is provided for micrometric adjustment.
MODELPC-A702PC-A703
MINIMUM THICKNESS OF CUT 3mm 3mm
DISTANCE FROM FENCE TO BLADE 185mm 230mm
DISTANCE FROM FRRD ROLLER TO BLADE 190mm 190mm
TABLE HEIGHT FROM FLOOR 835mm 975mm
WHEEL DIAMETER 710mm 915mm
WHEEL WIDTH 90mm 90mm
WIDTH OF BLADE 100mm 100mm
LENGTH OF BLADE 4850mm 5760mm
FEED OF BLADE VARIABLE VARIABLE
WHEEL DRIVE MOTOR 20HP 30HP
HYDRAULIC PUMP MOTOR 2HP 2HP
N.W. 1700kgs 2800kgs
G.W. 1900kgs 3000kgs
PACKING DIMENSIONS 228x138x225cm 262x142x255cm
