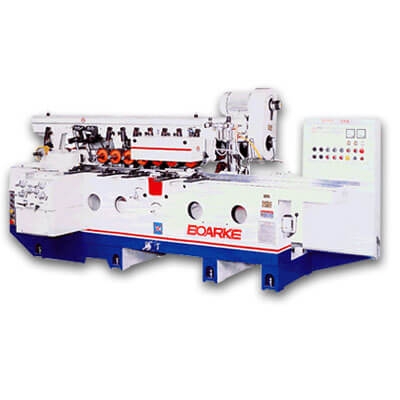

• Constructed with double saw spindles that are fitted with multiple sawblades. After cutting, the wood material feeds into groove guide to ensure high cutting accuracy.
  • The feed rollers are pneumatic loaded combined with a gear reducer, providing powerful synchronized feeding effect.
  • Multiple upper and lower driver rollers makes feeding system powerful and smoothly.
  • Powered elevation of feed rollers provides convenient and fast adjustment.
  • The table is manufactured from ductile cast iron, vacuum heat-treated, precision ground and hard chrome plated for maximum wear resistance.
  • The saw spindles feature overload protection. In the event an overload occurs, the feed motor stops first then the saw spindle motor stops for safety.
  • Air blast cooling device equipped on the saw spindle eliminates overheating problems for the sawblade.
Cutting width 130mm
Max. workpiece thickness 126mm
Spindle diameter 40mm (50mm  Optional)
Front bottom spindle motor (B1) 5HP
Right sawblade spindle motor (R1) 20HP
Left sawblade spindle motor (L1) 20HP
Feed speed 1.5~18  M/min
Elevating power 1HP
Feeding power 5HP
Rev. speed of sawblade 3800-4200 R.P.M.
N.W. / G.W. 2500 / 3200 kgs
Machine size 3360x1900x1570mm
Measurement 3570x2100x1780mm
