AUTOMATIC DOVETAIL TENONER

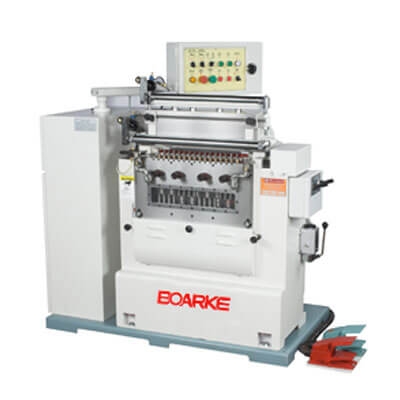

PC-F501 Automatic Dovetail Tenoner

PC-F501 Automatic Dovetail Tenoner

PC-F501 Automatic Dovetail Tenoner
PC-F501
Product Description

PROXIMITY SWITCH CONTROL

The feed forward and backward motions and mortise depth are separately controlled by proximity switches. An additional proximity switch is used for controlling fast return of table for reducing non-cutting time.

WORKPIECE CLAMP CONTROL

The workpieces clamps are controlled manually by two control levers

AUTOMATIC UPPER AND SIDE CLAMP

The workpiece is clamped firmly by the upper and side clamp bars.

Designed for parts machining for high grade furniture, construction materials, boats, musical instruments, ect.

Inquiry
FEATURES:
  • Automatic operation in addition to workpiece clamping.
  • Tenon and mortise are produced simultaneously to ensure jointing accuracy.
  • Choice of 8 or 16 spindle configuration.
  • Foot switch control for added operation convenience.
  • Top and side clamping bars hold workpiece firmly.
  • Tenon thickness and depth are adjustable.
  • Mortise depth and height are adjustable.
  • Air/hydraulic combination cylinders for stable motions.
  • Spindle drive gears are oil bath lubricated.
MODELPC-F501PC-F502
Motor 2 HP x 1 P.C. 2 HP x 2 P.C.
Capacity (thick)x(wide) 3/8"-1 x 8 1/4" 3/8"-1 x 16 1/4"
Number of tools 8 16
Spindle speed 6500 RPM 6500 RPM
Machine dimensions 50" x 47" x 61" 50" x 47" x 61"
Packing dimensions 51" x 48" x 62" 58" x 48" x 62"
Net weight 480 kgs 600 kgs
Gross weight 580 kgs 700 kgs
