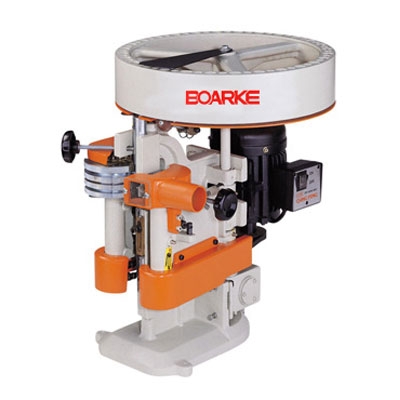

PC-E501
FEATURES:
  • Suitable for cutting dowels form Ø6 to Ø18mm in diameter, 20 to 150mm in length.
  • Combined cut-off and chamfering in a unit.
  • Cutting length adjustable .
  • Capacity 1800 pieces per hour.
  • Simply loaded the wood dowel into the revolving tray, the machine will perform cut-off and chamfering.
  • Easy movement from, one job site to another.
  • Used together with Dowel Milling Machine will be a complete set of perfect mechanism for making dowel.
  • Dust proof switch
MODELPC-E501
Range of working diameter Ø6 to Ø18mm
Range of working length 20mm~150mm
Drive motor 1/2HP
Capacity 30 piece/min
Machine size (L x W x H) 560x500x580mm
Packing size (L x W x H) 620x610x750mm
Packing size (L x W x H) CF-18+CF36:870x690x750mm/180kg
Net weight 70kg
Gross weight 100kg
