Wood Rip Saw (PC-B107) | BOARKE : Wood Rip Saw Manufacturers

MODEL	PC-B107
Minimum working length	200mm (8")
Maximum thickness	125mm (4.92")
Distance between saw and column	610mm (24")
Saw arbor motor	15HP,20HP or 25HP
Saw arbor speed	3500 rpm
Saw blade diameter	dia. 300-400mm (12"-16")
Saw arbor diameter	dia. 38.1mm (1.5")
Feed motor	2HP (3HP on request)
Feed speed	15-36M/min (25-60M/min on reguest)
Number of holding rollers	8
Work table height	810mm (32")
Table area (W x L)	1260x1900mm (50"x75")
Overall dimension (W x L x H)	1430x2260x1460mm (56"x89"x57")
Shipping dimension (W x L x H)	1600x2100x1700mm (63"x83"x67")
N.W.	1550kgs (3414lbs)
G.W.	1800kgs (3965lbs)

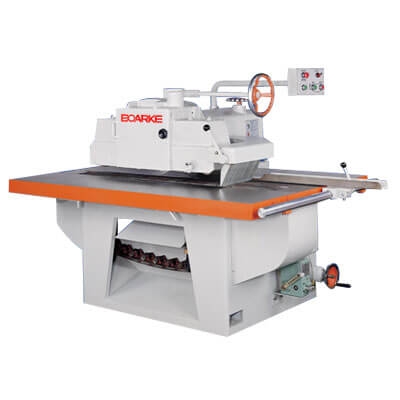

RIP SAW
