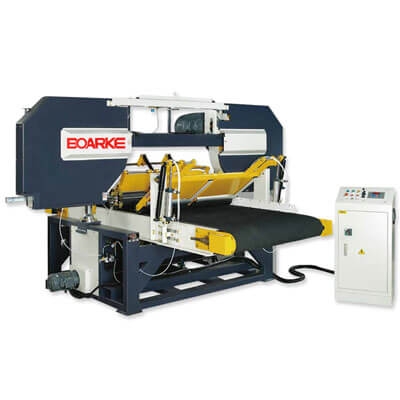

PC-A930
Product Description

Blade Tension by Air and Hydraulic Compensation System to ensure a constant blade tension at all time.


Rigid Blade Tension Beam

The blade tension is controlled by a hydraulic cylinder for positive tension control at all time.

Heavy blade tension beam is fastened to the wheel soft avoids blade run-out.

Infeed Pressure Rollers

The infeed pressure mechanism consists of three extra wide pressure rollers, making this machine ideal for cutting composed panel.

Each infeed pressure roller is loaded by a buffering cylinder for extremely stable holding effect.

Outfeed Pressure Rollers

The outfeed pressure mechanism consists of three extra wide pressure rollers, making this machine ideal for cutting composed panel.

Each outfeed pressure roller is loaded by a buffering cylinder for extremely stable holding effect.

FEATURES:
  • Pneumatic Pressure Roller System
  • Hold Down Roller by Air Cylinder
  • With Mist Coolant System for Saw Blade
  • With Air/Hydraulic Compensation System
  • Min. working length: 500mm
MODELPC-A930
Max. workpiece size 1300 x 2500
Distance from blade to conveyor belt 4-250 mm
Saw wheel diameter 42" x2"
Feed speed 0 - 12 M/min
Saw blade size 321" x 4"
Saw wheel motor 40 HP
Dust hood diameter Ø 4" x 2
Machine weight 5000
Packing dimensions 5000 x2300 x2100mm
