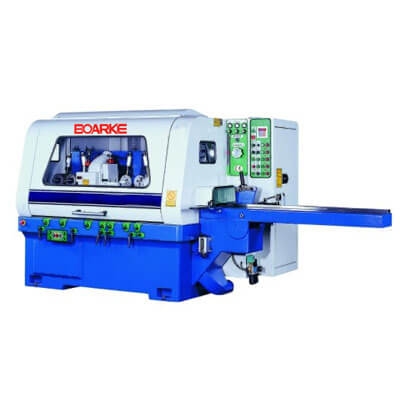

PC-C621
FEATURES:
MODELPC-C621
Min.working width 18mm
Min.working thickness 6mm
Min.working lengh 240mm
Max.working thickness 125mm
Max.working width Up to 230mm
1st &2nd motor 7.5HP
Motor 10HP
Feed motor 5HP
Elevation motor 1HP
Spindle diameter Ø40~optionalØ50mm
Spindle cutting speed 6200-7200R.P.M
  100-125mm
  110-180mm
Dust outiet diameter 5Inch
N.W. 2650kgs
G.W. 3300kgs
Packing size 91*79*83Inch
Moulding spindle number 4
