Product Description
proimages/pro/Sander_Machine/1-01.jpg
D Type
proimages/pro/Sander_Machine/1-02.jpg
A Type
proimages/pro/Sander_Machine/1-03.jpg
DA Type
proimages/pro/Sander_Machine/1-04.jpg
DDA Type
FEATURES:
  • The contact roll is rubber coated and dynamically balanced.
  • Photoelectric cell controlled sanding belt tracking.
  • Body activated emergency stop.
  • Variable feed speed of conveyor belt.
  • Automatic machine stop in the event of air failure or sanding belt breakage.
  • Work table computerized table-elevation.
  • Quick replace sanding belt device.

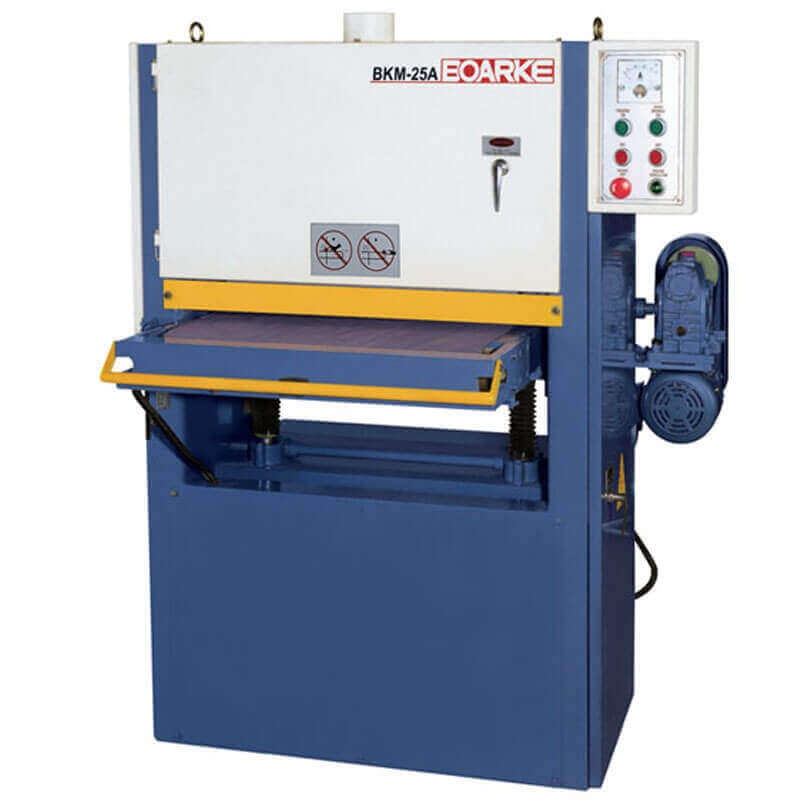

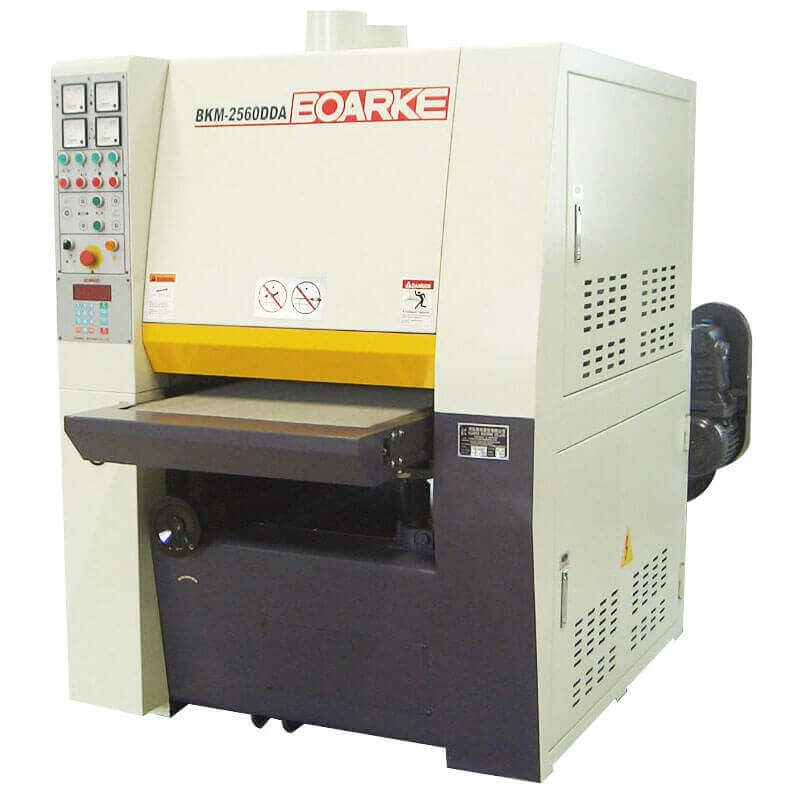

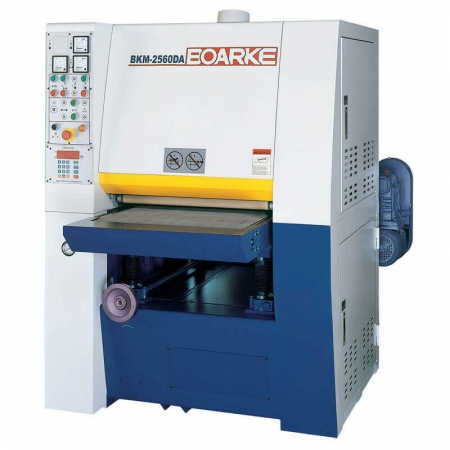

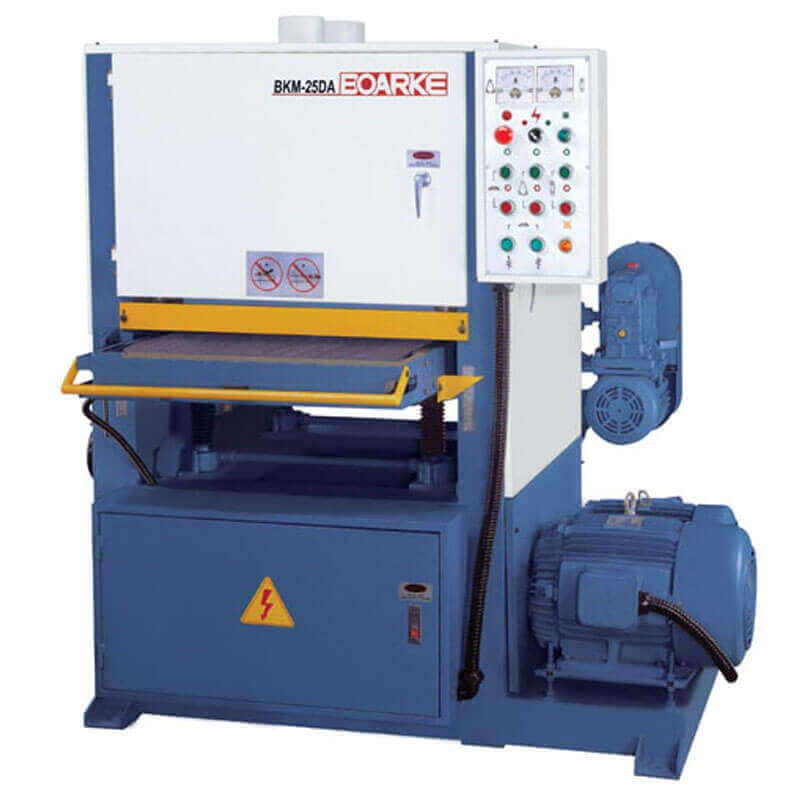

MODELBKM-25DBKM-25ABKM-25DABKM-2560DBKM-2560ABKM-2560DABKM-2560DDABKM-37DBKM-37ABKM-37DDA
Max. working width 24" 24" 24" 24" 24" 24" 24" 36" 36" 36"
Max. working thickness 5" 5" 5" 5" 5" 5" 5" 5" 5" 5"
Main motor (standard) 10HP 7½HP 10、7½HP 10HP 10HP 15、10HP 15、10、7½HP 15HP 15HP 20、15、10HP
Main motor (optional) 15HP 10HP 15、10HP 15HP 15HP 20、15HP 20、15、10HP 20HP 20HP 25、20、15HP
Feed motor 1HP 1HP 2HP 1HP 1HP 2HP 2HP 1HP 1HP 2HP
Table hoist motor ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP ½HP
Feed speed selectable range (m/min) 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5%
Sanding belt size 25"x48" 25"x48" 25"x48" 25"x60" 25"x60" 25"x60" 25"x60" 37"x60" 37"x60" 37"x60"
Working pressure (kg/cm²) 6 6 6 6 6 6 6 6 6 6
Net weight (kgs) 620 620 1100 700 750 1100 1400 900 950 2300
Gross weight (kgs) 770 770 1300 850 900 1200 1600 1105 1200 2500
Machine size (LxWxH) cm 139x120x160 139x120x160 160x160x165 165x135x175 165x135x175 195x135x175 219x135x175 165x165x175 168x170x190 219x165x175
Packing size (LxWxH) cm 148x130x179 148x130x179 169x169x185 170x140x185 170x140x185 208x148x185 230x150x185 170x170x203 178x180x203 224x170x203
