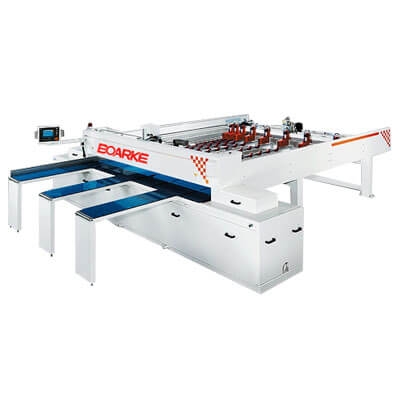

Panel Saw (PC-B300)

Panel Saw (PC-B300)

Panel Saw (PC-B300)
PC-B300
Product Description

FLOATING TABLES

Floating tables are powered by a high-pressure blower.

And Improve the heavy loading of the floating table.

The operator can easily feed workpiece by pushing the sheet lightly. The floating tables are standard equipment.

SHORTENED DISTANCE BETWEEN CLAMP AND SAWING PATH

The pressure bean is specially designed. The pressure plates on the pressure beam have slots make clamps close to cutting path. It can be 41mm to save material.

SIDE PRESSING PLATE

The side of pressing plate automatically pushes feeding panels against the fence. And keep high and vertical accuracy on panel sawing. The side pressing plate is driven by an independent motor. Fences are by computer controlled.

SAW CARRIAGE DRIVEN BY RACK/HEAR

The saw carriage is driven by a 2HP motor and transmitted through gear and rack mechanism. The outstanding transmission of design assures smooth- feeding even under heavy cutting condition.

Inquiry
FEATURES:
MODELPC-B300PC-B301PC-B302
cutting lengh 2600 mm 3100 mm  3700 mm
cutting thickness 80mm 80mm 100mm
main motor 15HP 15HP 15HP
saw carriage drive motor 2HP 2HP 2HP
feeding motor 1 Kw (SERVO) 1 Kw (SERVO) 1 Kw (SERVO)
cutting speed 5~60m/min 5~60m/min 5~60m/min
feed speeds(variable) 50m/min 50m/min 50m/min
floating motor 3HP 3HP 3HP
floating table 400X1200 mm x 3sets
side pressure motor 90w 90w 90w
main sawblade 355mm 355mm 405mm
1" 1" 1"
4400rpm 4400rpm 4400rpm
scoring sawblade 180mmx3.2~4.0mm
1" 1" 1"
6200 rpm 6200 rpm 6200 rpm
air pressure 5~6 kg/cm2  5~6 kg/cm2  5~6 kg/cm2
dimensions 5145x4700x1700mm 5745x5300x1700mm 6345x5900x1700mm
net/gross weight 3738/3938 kg 3938/4138 kg 4138/4338 kg
packing size 20'  container 20' container 40' container
