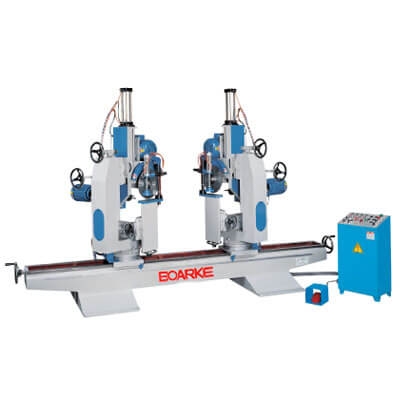

• The machine is suitable for processing wooden furniture, four-corner tables, six-corner tables, octagonal tables and various corner frames.
  • Fully automatic operation, to use manual button to start. For Emergency stop, step on the foot switch. Instantly protect the safety of the operator's hands.
  • The machine column can be adjusted the angle from 0 ° to 180 °, and the saw blade and the drilling machine can be adjusted from 0 ° to 45 ° simultaneously, which is easy to operate.
  • All machine actions are pneumatically driven.
  • Each saw blade and boring head are operated independently and can be driven simultaneously or controlled separately.
  • The boring heads can be adjusted by vertical and horizontal directions.
  • The worktable can be adjusted up and down.
  • When the saw blade doesn’t return to the original point, the boring head will not feed to ensure the safety for man and machine.
Max.working length 1800mm 2400mm
Min.working length 260mm 260mm
Max.Angle of  working 0°-15° 0°-15°
Max.workpiece thickness 80mm 80mm
Max.workpiece width 150mm 150mm
Sawblade diameter 12" or 14" 12" or 14"
Sawblade speed 4500rpm 4500rpm
Saw arbor 1"(24.5mm) 1"(24.5mm)
Saw arbor elevation traverse 250mm 250mm
Table area 80x300mm 80x300mm
Table height from floor(Min.) 900mm 900mm
Boring head stroke 150mm 150mm
Boring speed 50Hz 3400rpm,60Hz 3600rpm 50Hz 3400rpm,60Hz 3600rpm
Working air pressure 6kg 6kg
Boring head motor 2HPx2 2HPx2
Sawblade motor 3HP or 5HPx2 3HP or 5HPx2
Packing dimensions(L×W×H) 2800x1000x2280mm 3400x1000x2280mm
Net weight 2090kg 2150kg
Gross weight 2140kg 2200kg
