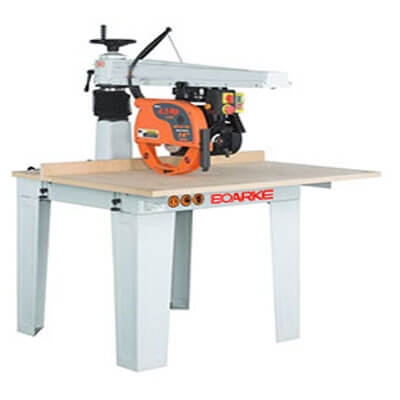

Radial Arm Saw Machine (PC-B635)

MODEL	PC-B635					PC-B636
Motor horsepower	3ψ4.5HP					3ψ4.5HP
	2ψ2.5HP					2ψ2.5HP
Motor speed	50HZ 2900 r.p.m.					50HZ 2900 r.p.m.
	60HZ 3400 r.p.m.					60HZ 3400 r.p.m.
Bearing track	Linear bearing/8pcs					8pcs
Spindle diameter	ψ1”(25.4mm)					ψ1”(25.4mm)
Saw blade diameter	14”(355mm)					16”(405mm)
Rotary head	0-180°					0-180°
Head tilt	(0°,22°,45°,90°)					(0°,22°,45°,90°)
The maximum width of the trimming	1100mm					1140mm
The maximum capacity of crosscutting	620mm					900mm
Table area ( length * width )	600*1100mm					820*1140mm
Mechanical Dimensions	112011001170mm					145012501600mm
Packing size	1130940790mm					14501070790mm
Net / Gross	200/240kgs					250/290kgs
The outer diameter of the saw blade	12”	14”	16”	18”	20”		22”
Cutting thickness	65mm	95mm	120mm	145mm	175mm		195mm

Cantilever cross universal circular sawing machine
