PC-C: Jointer / Planer / Wood Moulding Machine

WOOD PLANER SANDER

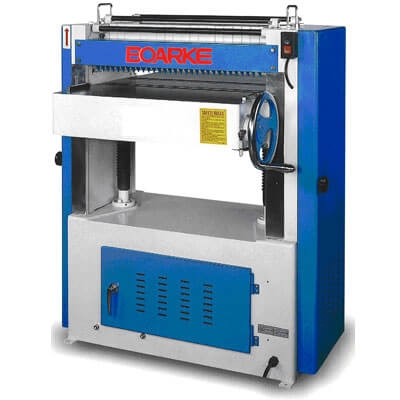

PC-C221 Wood Planing Machine

PC-C221 Wood Planing Machine

PC-C221 Wood Planing Machine
PC-C221
Inquiry
FEATURES:
MODELPC-C221PC-C222
Table area 546 x 724 mm 635 x 775 mm
Max. planing width 508 mm 610 mm
Max. planing thickness 178 mm 178 mm
Min. planing thickness 3 mm 3 mm
Max. cutting depth 6.4 mm 6.4 mm
Knives Straight cutterhead 3 3
Helical cutterhead 6 Slots / 132 pcs 6 Slots / 156 pcs
Knife sizes Straight cutterhead 510 x 30 x 3 mm 610 x 30 x 3 mm
Helical cutterhead 14 x 14 x 2.0 mm 14 x 14 x 2.0 mm
Cutterhead speed 5200 rpm 5200 rpm
Cutterhead diameter 80 mm 80 mm
Feed speed 8 m/min 8 m/min
Cutterhead motor 5 HP 5 HP
Net weight 360 kgs 550 kgs
Gross weight 495 kgs 695 kgs
Packing size (L x W x H) 93 x 78 x 126 cm 105 x 85 x 126 cm
