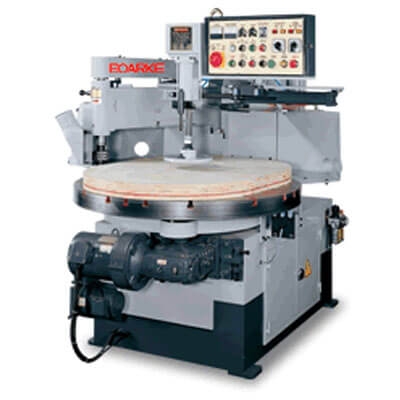

PC-H: Making Machine | Automatic Copyshapers

MODEL	PC-H204	PC-H205
Range of cutting diameter	10" - 72"	10" - 62"
Maximum rectangular cutting (2:1)	64.2" x 32.1"	55.2" x 27.6"
Table diameter	46"	46"
Table rotation speed (Auto variable)	1-3RPM	1-3RPM
Spindle speed	9000RPM	9000RPM
Spindle diameter	1",30MM 11/4"	1",30MM 11/4"
(interchangeable)	(One dia funished)	(One dia funished)
Cutter size	100mm	100mm
Follower roller diameter	100mm	100mm
Table drive motor	2HP x 1	2HP x 1
Spindle drive motor	10HP x 1	10HP x 1
Net weight	1450kgs	1350kgs
Gross weight	1900kgs	1770kgs
Packing size	86" x 75" x 81"	73" x 66" x 80"

AUTOMATIC COPYSHAPERS
