PC-H: Spindle Shaper Making Machine

AUTOMATIC COPYSHAPERS

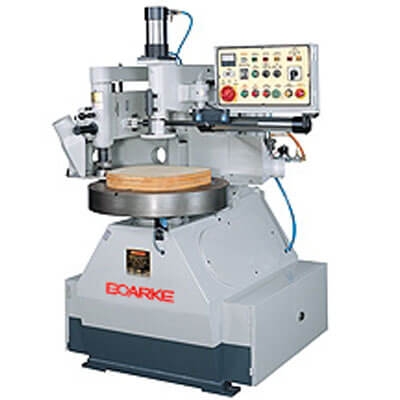

PC-H202 Automatic Copy Shaper

PC-H202 Automatic Copy Shaper

PC-H202 Automatic Copy Shaper
PC-H202
Inquiry
FEATURES:
MODELPC-H202PC-H203
Range of cutting diameter 4" - 36" 3" - 28"
Maximum rectangular cutting (2:1) 32" x 16" 25" x 12.5"
Table diameter 26" 18"
Table rotation speed (Infinitely variable) 1.5 - 4RPM 1.5 - 4RPM
Spindle speed 8000RPM 8000RPM
Spindle diameter 1",30MM 11/4" 1",30MM 11/4"
(interchangeable) (One dia funished) (One dia funished)
Cutter size 100mm 100mm
Follower roller diameter 100mm 100mm
Table drive motor 1HP x 1 1HP x 1
Spindle drive motor 7 1/2HP x 1 7 1/2HP x 1
Net weight 870 kgs 760 kgs
Gross weight 1120 kgs 960 kgs
Packing size 62" x 62" x 77" 54" x 54" x 77"
