CNC-02
Product Description
proimages/pro/CNC_Machining_Center/15-4.jpg
Sample from this machine
FEATURES:

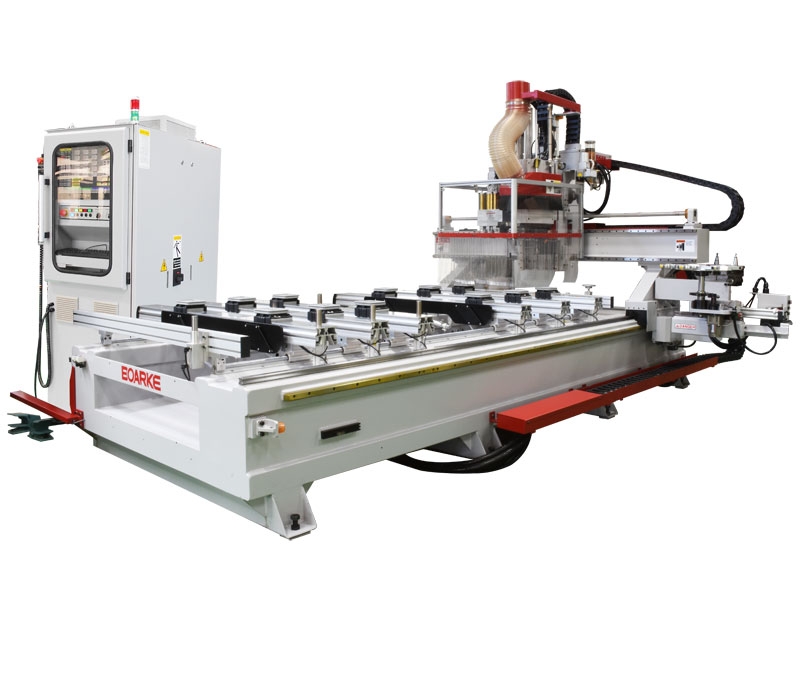

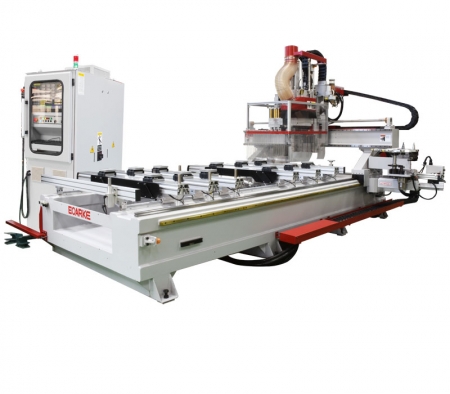

  • R type machining center designed with single routing spindle, ATC, boring and sawing units.
  • R type achieves various machining tasks in one cycle, such as door carving, inner and outer porfiles, front line boring, single side boring and grooving.

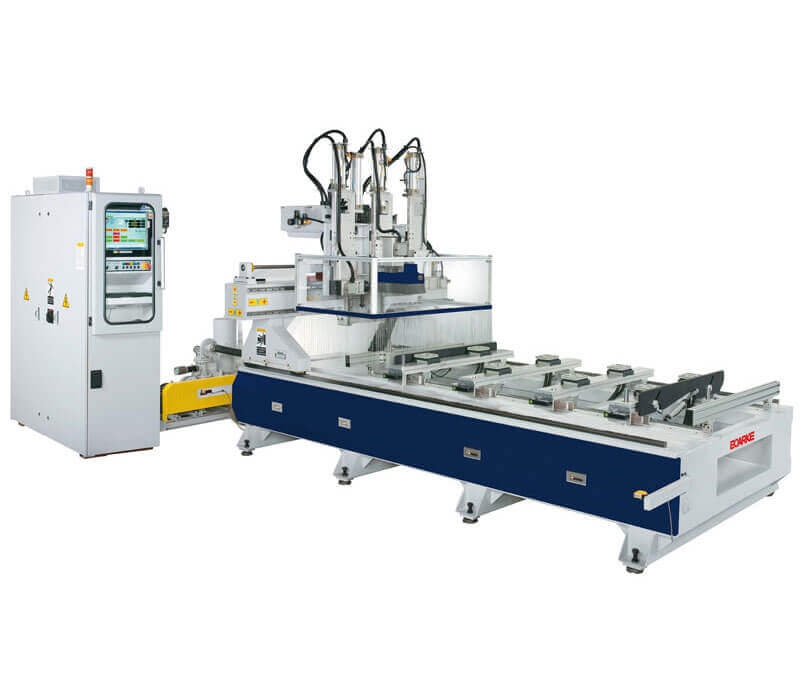

  • Three spindle configuration (1 vertical and 2 horizontal). M type machining center perfect for machining doors and windows.
  • M type is suitable for door and window machining. Various oarts can be machined in one cycle such as side key hole, door knob hole. handle, eye hole and door board carving.

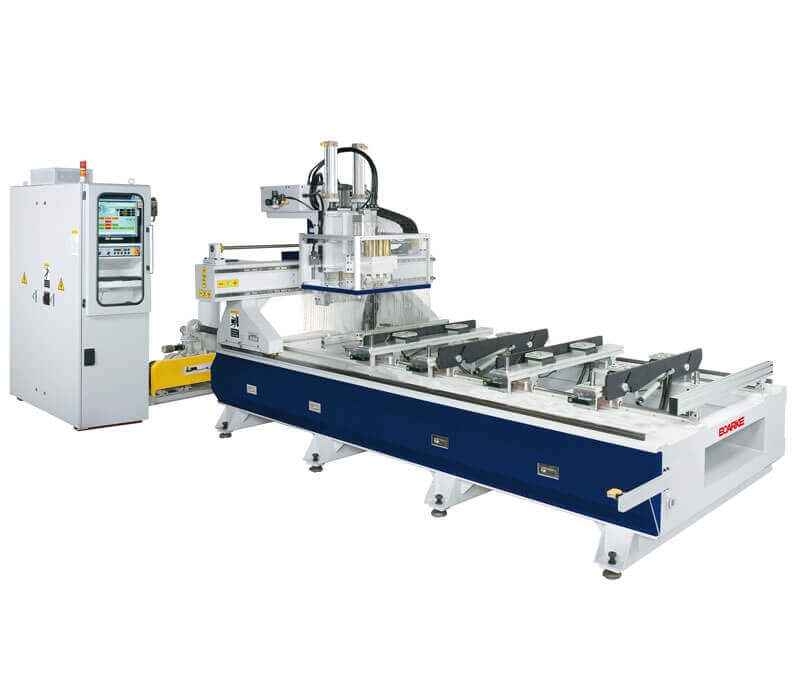

  • D type machining center perfect for boring and sawing operations.
  • D type is perfect for producing DIY fumiture. It achieves various machining tasks in one cycle, such as front line boring, single side boring and grooving.
  • Specific boring head combinations are available to meet special machining requirements. (optional)

Application

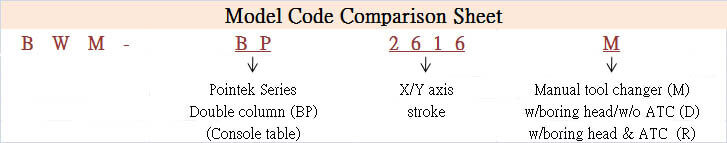

MODELBWM-BP2616RBWM-BP3216RBWM-BP3816RBWM-BP2616MBWM-BP3216MBWM-BP3816MBWM-BP2616DBWM-BP3216DBWM-BP3816D
Max.working area 1220×2440mm 1220×3050mm 1220×3650mm 1220×2440mm 1220×3050mm 1220×3650mm 1220×2440mm 1220×3050mm 1220×3650mm
Max.workpiece aheight 200mm 200mm 200mm 200mm 200mm 200mm 200mm 200mm 200mm
Rapid speed  X/Y axis 60M/min 60M/min 60M/min 60M/min 60M/min 60M/min 60M/min 60M/min 60M/min
Rapid speed      Z axis 20M/min 20M/min 20M/min 20M/min 20M/min 20M/min 20M/min 20M/min 20M/min
Max.spindl speed 24000RPM 24000RPM 24000RPM 18000RPM 18000RPM 18000RPM
Spindle type ISO Air cooling ISO Air cooling ISO Air cooling ISO Air cooling ISO Air cooling ISO Air cooling
Spindle motor 12HP(9KW) 12HP(9KW) 12HP(9KW) V:6HP×1pc   H:4HP×2pc V:6HP×1pc   H:4HP×2pc V:6HP×1pc   H:4HP×2pc
Vacuum pump power 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW) 7.5HP(5.625KW)
ATC 8 plastic grippers on the spindle side (carousel type)
