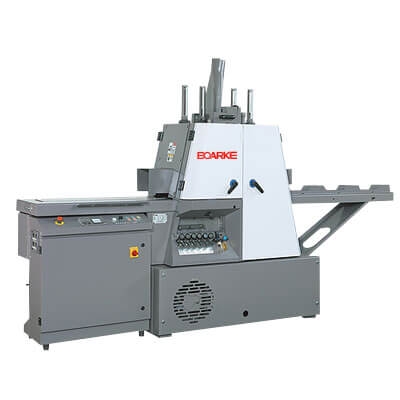

PC-A900 Thin Cutting Frame Saw

PC-A900 Thin Cutting Frame Saw

PC-A900 Thin Cutting Frame Saw
PC-A900
Product Description
proimages/pro/Woodworking_Machine/A900a.jpg
proimages/pro/Woodworking_Machine/A900b.jpg
Thin wood
proimages/pro/Woodworking_Machine/A900c.jpg
Toy: Airplane model
proimages/pro/Woodworking_Machine/A900d.jpg
Musical Instrument
proimages/pro/Woodworking_Machine/A900e.jpg
Stationery: pencil
proimages/pro/Woodworking_Machine/A900f.jpg
Sporting Goods: Ski
proimages/pro/Woodworking_Machine/A900g.jpg
Composite flooring, stair plate and venetian blind
Inquiry
FEATURES:
    • The PC-A900 Thin-Cutting Frame Saw from Mick & Jack is designed and engineered to enhance the high efficiency and high accuracy cutting.
    • In addition to provide various cutting modes, the PC-A900 also features great material-cost saving that creats profits for customer.
    • The machine is equipped with a micro-computer control for maximum operational convenience.
    • Upon request, the machine can be supplied with steel welded sawblade or T.C.T. sawblade for choice.
    • The customer may choose various sawblade thickness from 0.9 to 1.4 mm to suit various wood materials.

Multiple processing


  • Guide Fence At Side

  • Multiple Guide Fence

  • Guide Fence At Center Position
MODELPC-A900
MOTOR  15Kw (20HP)
FEED SSPEED  0.1~0.8M/min.
FRAME STORKE  210mm
STORKE NUMBER PER MINUTE 450rpm
HEIGHT RANGE OF CUT 60~250mm
WOOD HEIGHT OF DIFFERENCE ±0.5mm
WIDTH OF CUT(SIDE GUIDE FENCE) 60-150
WIDTH OF CUT(CENTER GUIDE FENCE) 2x30-65mm
WIDTH OF CUT(CHANNEL TYPE) 2~4x20-65mm
MINIMUM BLOCK LENGTH 300mm
SLICE THICKNESS >2.0mm
CUTTING ACCURACY(60~160mm) ±0.1mm
CUTTING ACCURACY(60~250mm) ±0.2mm
CUTTING LOSS 0.9~1.4mm
APPROX SAW BLADE NUMBER(UNDER 200mm) ＜22 pc
APPROX SAW BLADE NUMBER(UNDER 200~250mm) ＜12 pc
MAXIMUM SAW BLADE LIFE 4~24 hour
N.W. 2400kgs
G.W. 2600kgs
MACHINE DIMENAIONS(LxWxH) 3600x800x1900mm
PACKING DIMENAIONS(LxWxH) 2740x1200x2210mm
