CNC-04
Product Description
proimages/pro/CNC_Machining_Center/15-4.jpg

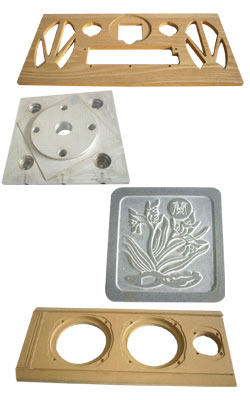

Sample from this machine
FEATURES:

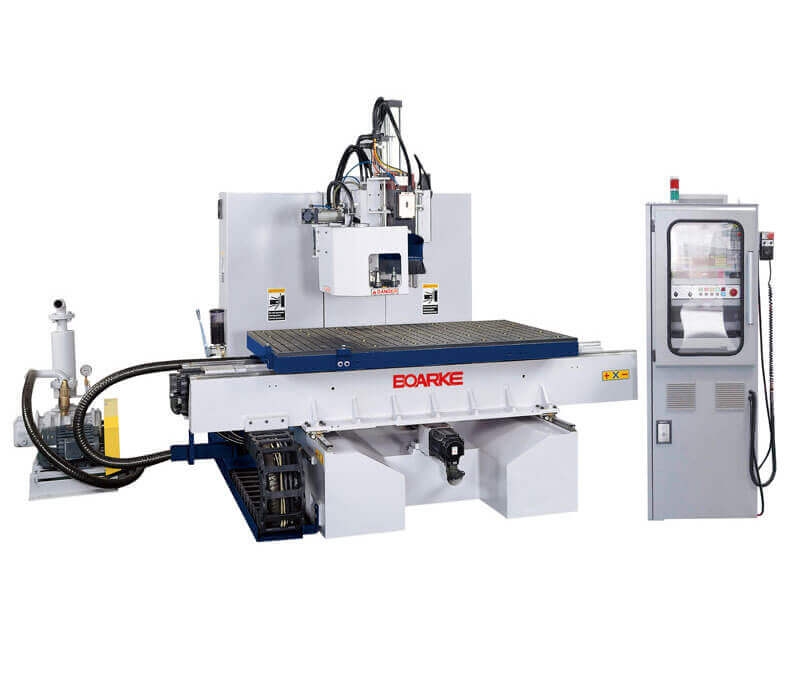

  • A type: Single column structure design. One spindle and one tool magazine.
  • Typical applications: kitchen and cabinet doors, audio box panels, gift and stationery cases.

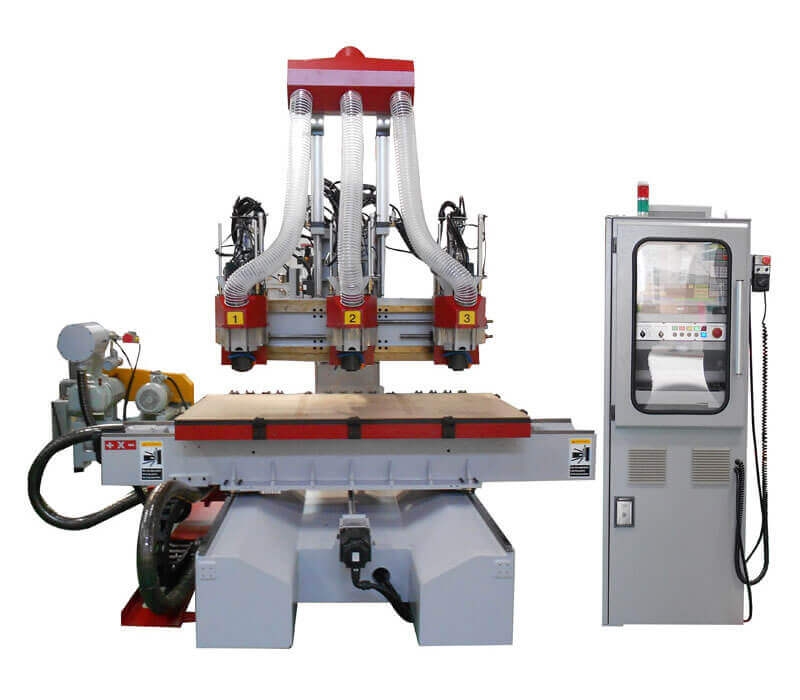

  • M type: Single column structure design. Three spindles with 4 grippers for each spindle on the table side.
  • Suitable for machining various complex parts in small quantites.
  • Typical applications: audio box panels, gift and stationery cases.

Application

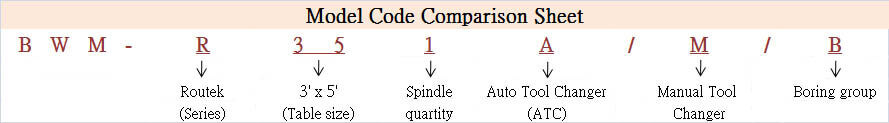

MODELBWM-R351ABWM-R353A
Max.working area 900×1500mm 900×1500mm
Max.workpiece aheight 200mm 200mm
Rapid speed  X/Y axis 40M/min 40M/min
Rapid speed      Z axis 20M/min 20M/min
Max.spindl speed 24000RPM 24000RPM
Spindle type ISO Air cooling ISO Air cooling
Spindle motor 12HP(9KW) 12HP(9KW)×3pc
Vacuum pump power 7.5HP(5.625KW) 7.5HP(5.625KW)
ATC 8 plastic grippers on the spindle side(carousel type) 4 plastic grippers on the table side(linear type)
