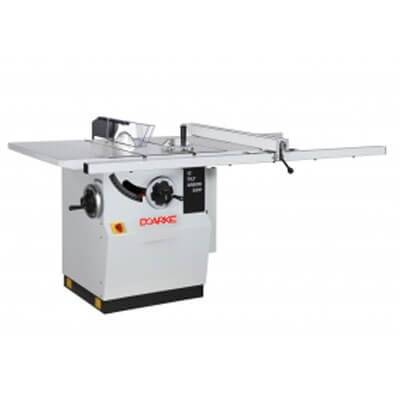

PC-B001
FEATURES:
MODELPC-B001PC-B002PC-B003PC-B004
Diameter saw blade 10" 12" 14" 16"
(250mm) (305mm) (350mm) (405mm)
Max. depth of cut at 90° 3" 4" 5" 6"
(76mm) (101.6mm) (125mm) (152mm)
Max. depth of cut at 45° 2" 2 3/4" 3 1/2" 4 1/4"
(50.8mm) (70mm) (88mm) (108mm)
Arbor diameter 5/8" 1" 1" 1"
(*1"/*30m/m) (*30m/m) (*30m/m) (*30m/m)
Arbor speed 4200rpm 4000rpm 3750rpm 3750rpm
Table size 36"x27" 48"x30" 48"x38" 48"x38"
(915x685mm) (1220x762mm) (1220x965mm) (1220x965mm)
Table height 34 1/4" 34 1/4" 34 1/4" 34 1/4"
(857mm) (857mm) (857mm) (857mm)
Sliding table capacity 3'x6' 4'x8' 4'x8' 4'x8'
(914x1828m/m)(*4'x8') (1220x2440m/m) (1220x2440m/m) (1220x2440m/m)
Max. rip to right of blade 25" 38" 49" 49"
(635mm) (965mm) (1245mm) (1245mm)
Motor 3HP 3HP 5HP 7.5HP
(*2HP*5HP) (*5HP) (*7 1/2HP) (*10HP)
Net weight 407lb 572lb 847lb 869lb
(185kgs) (260kgs) (385kgs) (395kgs)
Gross weight 495lb 704lb 1012lb 1034lb
(225kgs) (320kgs) (460kgs) (470kgs)
Packing size 29"x36"x42"h 32"x36"x42"h 37"x44"x42"h 37"x44"x42"h
