Wood Board Jointing Machine | Boarke - High Frequency Wood Board Jointing Machine Suppliers

FEATURES:

MODEL	PC-J541	PC-J542	PC-J543	PC-J544	PC-J545	PC-J546
MAINS VOLTAGE	3PHASE 200~600V 50/60HZ
INPUT POWER	15KVA	30KVA	50KVA	60KVA	150KVA	250KVA
OUTPUT POWER	10KW	20KW	30KW	50KW	100KW	150KW
WORKING AREA	15~50	15~50	15~50x1250x2500	15~50	15~150	15~300
WORKING AREA	x950x1250	x950x1850	15~50x1250x2500	x1250x5000	x1250x6000	x1250x6000
MOTOR	2HP	3HP	5HP	7.5HP	10HP	15HP
HYDRAVLIC	HYDRAVLIC	HYDRAVLIC	HYDRAVLIC	HYDRAVLIC	HYDRAVLIC	HYDRAVLIC
Control System	BY ELECTRONIC (TOUCH SCREEN)
MACHINE SIZE	4300x1800x2000	6000x1800x2050	7800x2200x2200	15200x2200x2200	18400x2200x2450	18800x4800x2500
WEIGHT	3500KG	4500KG	5000KG	9000KG	12000KG	15000KG

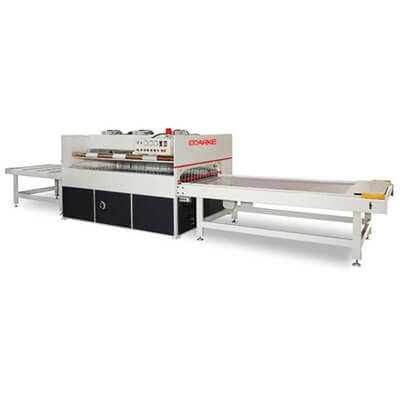

HIGH FREQUENCY WOOD BOARD JOINTING MACHINE AND FULL AUTO SYSTEM
