MORTISING MACHINE

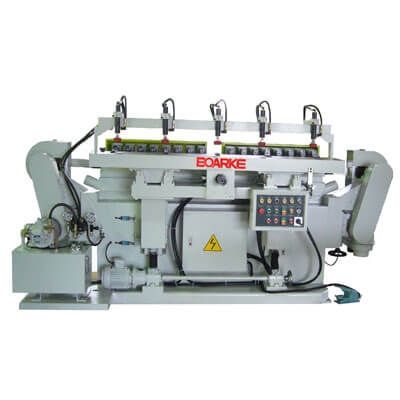

PC-F411 Mortising Machinery

PC-F411 Mortising Machinery

PC-F411 Mortising Machinery
PC-F411
Inquiry
FEATURES:
MODELPC-F411PC-F412PC-F413
Spindle motor 3HP×2 5HP×2 5HP×3
Shake spindle motor 1HP×2 1HP×2 1HP×2
Hydraulic pump motor 2HP×1 2HP×1 2HP×1
Stroke travel 100mm 100mm 100mm
Number of spindle 8 16 16
Oscillation stroke 0-100mm 0-100mm 0-100mm
Boring diameter Ø10mm~Ø16mm Ø10mm~Ø16mm Ø10mm~Ø16mm
Table size 300×1200mm 350×1800mm 350×2400mm
Tableelevation motor 1/2HP 1/2HP 1/2HP
Cylinder clamp 4 5 6
Hydraulic pressure 30kg/cm2 30kg/cm2 30kg/cm2
Packing size  2400×1200×1650 2955×1150×1600 3890×1150×1650
N.W. 1250kg 2000kg 2260kg
G.W. 1310kg 2120kg 2395
