SPINDLE SHAPER

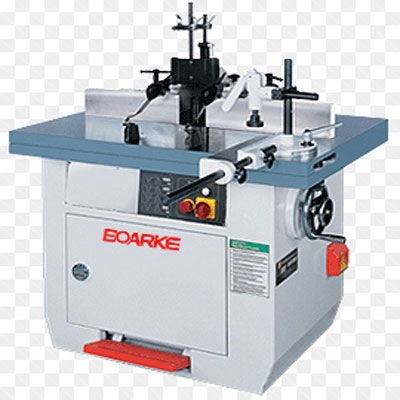

PC-H007 Spindle Shaper

PC-H007 Spindle Shaper

PC-H007 Spindle Shaper
PC-H007
Inquiry
FEATURES:
MODEL PC-H007
Spindle Dia. 3/4", 1", 1-1/4"
Spindle Speed 3000 / 4500 / 7500 / 10000 rpm.
Taper of Spindle MK5
SPindle Motor 5 HP (7.5 HP opt.)
Spindle Travel 5" (130mm)
Tilting Angle —
Max. Table Insert Diameter 8-5/8" (220mm)
Table Size 41-3/8" x 31-1/8" (1050 x 800mm)
Table Height 35-1/2" (900mm)
Sliding Table Size 1050 x 250mm
Sliding Table Travel 38" (970mm)
Fence Size 4-15/16" x 35-1/2" (125 x 900mm)
Net weight 906 lbs(412kgs)
Gross weight 994 lbs(452kgs)
Packing size 48"(L) x 37"(W) x 50"(H)
