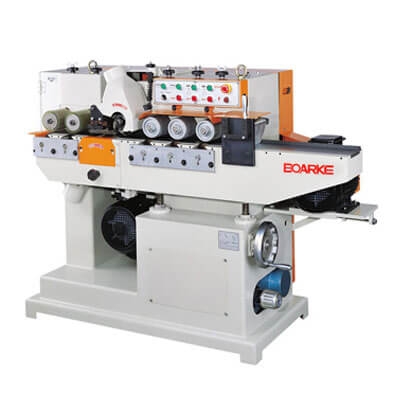

Product Description

Safety cover (Optional)

Two spindle suit for smooth dowel cutter fluted dowel citter and profile cutter...etc.

Variable feed speed change: Range from 4-13m/min

Range of working diameter Ø2 to Ø30mm
Upper spindle 7 1/2HP
Bottom spindle 7 1/2HP
Feed motor 1HP
Max working width 100mm(4")
Spindle speed 6500 rpm(60Hz)
Feed speed 4-13 m /min
Machine size (L x W x H) 1780x850x1250mm
Machine size (L x W x H) 1900x990x1450mm
Net weight 950kg
Gross weight 1100kg
