HORIZATAL & VERTICAL AUTOMATIC BORING MACHINE

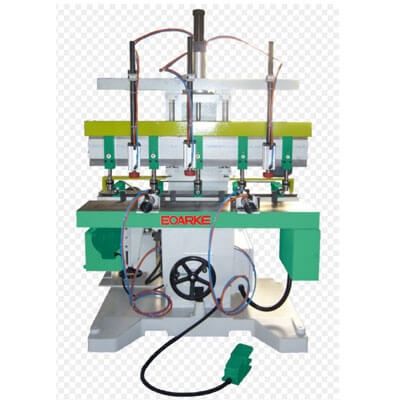

PC-D332 Horizatal & Vertical Automatic Boring Machine

PC-D332 Horizatal & Vertical Automatic Boring Machine

PC-D332 Horizatal & Vertical Automatic Boring Machine
PC-D332
Inquiry
FEATURES:
MODELPC-D332PC-D333
H-Spindle motor 2HP×1 2HP×1
H-Spindle travel 100mm 100mm
V-Sspindle motor 2HP×1 2HP×1
V-Spindle travel 150mm 150mm
Hydraulic pump motor 2HP×1 2HP×1
Number of H-V Spindle H5V5 H5V5
Number of H-V idler wheel H5V5 H5V5
Number of hold down clamp H2V2 H3V3
Spindle speed 60HZ R.P.M. 1/2 3500                                    3/8 4500 1/2 3500                        3/8 4500
Min.distance between drills HS-150mm                             HS-240mm HS-150mm                                     HS-240
Max.distance between drills 1200mm 1200mm
Max. boring height H:90mm V:90mm H:90mm V:90mm
Machine size 1350×1550×1800mm 1950×1550×1800mm
Packing size 1400×1600×1950mm 2000×1600×1950mm
N.W. 950kg 1050kg
G.W. 1150kg 1300kg
