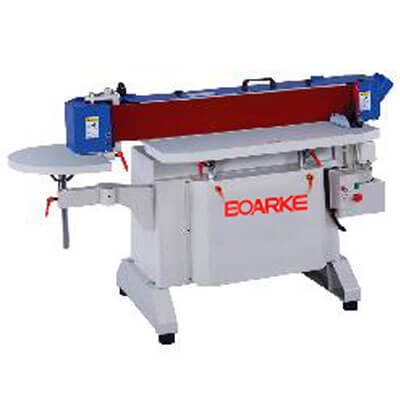

• Easy to operate oscillating belt sander.
  • Tables move up and down to suit the job.
  • Front table tilts 45 degree for beveled edge sanding.
  • Easy adjustment of abrasive belt tension and tracking.
  • Graphite backing reduces friction for longer belt life.
  • Precision machined, dynamically balanced aluminum drive pulleys.
  • Heavy steel base ensures a solid stable platform while sanding.
  • Large steel front table equipped with tilt eight adjustments.
Motor 2HP / 220V / 60Hz
Belt Size 152 x 2743mm
Belt Speed 3224 FPM (60Hz)
829 MPM (50Hz)
Front Table Size (L x W) 920 x 300mm
Table Tilt 45°
Table Height 810mm
Dust Port 4” x 2
Overall Dimension (L x W x H) 1620 x 660 x 1050mm
Packing Size (L x W x H) 1635 x 720 x 1230mm
N.W. / G.W. / Cuft 220 kgs / 245 kgs / 48’
