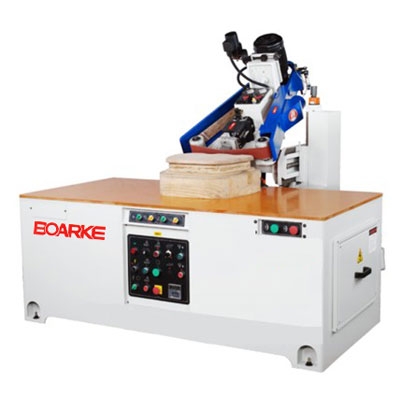

PC-G051
FEATURES:
MODELPC-G051
Maximum workpiece width 1500mm
Maximum workpiece height 75 mm (100 mm)
Sanding belt size 75 x 2490 mm(3" x98")(4"x98")
Sanding head tilt 70° ~190°
Sanding belt motor 2HP x 1(3HP)
Feed motor 1HP x 1/40
Sanding belt speed By variable speed of frequency inverter
Feed speed By variable speed of frequency inverter
Vaccum motor 3/4 HP
Machine dimension (L x W x H) 1850 x 1950 x 1450 mm
Packing dimension (L x W x H) 2100 x 2200 x 1800 mm
Net/Gross weight 950/1200 kgs
