PC-A: Band Saw Machine

Band Saw

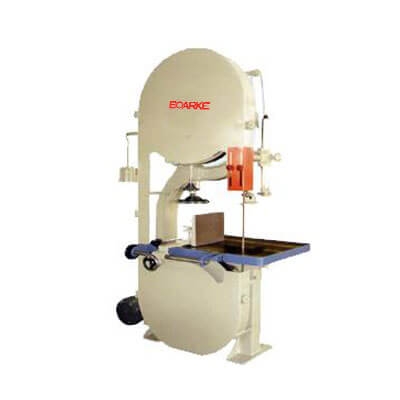

PC-A105 Industrial Band Saw

PC-A105 Industrial Band Saw

PC-A105 Industrial Band Saw
PC-A105
Inquiry
FEATURES:
  • Sawblade tension adjustment by a counter-balance weight providing accurate tension of sawblade.
  • Cast iron saw wheel, precisely balanced for smooth and accurate cutting.
  • Steel frame lengthen the life of machine.
  • Band saw blade optional.
  • Band saw can cut cardboard, rubber, foam, PVC, aluminum plate parts, etc.
MODELPC-A105
Wheel Diameter and face(m/m.) 660-50
Size of saw blade to be used Width(m/m.) 12-50
Length(m/m.) 4550
Thickness(BWG) 21-24
Max. diameter of log in center cut(m/m.) 360
Distance between saw and frame(m/m.) 600
Max. distance from saw to fence(m/m.) 350
Permissible wheel speed 600-700
Standard size of belt pulley 10-A2T
Power required 3HP
Net weight about 400kg
Boxed weight for export about 500kg
