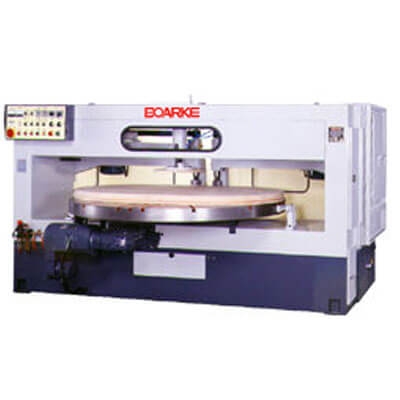

Heavy Duty Automatic Copy Shapers | PC-H214/H215 Model - Boarke Wood Working Equipment Series

MODEL	PC-H214	PC-H215
Range of cutting diameter	20" - 80"	16" - 60"
Maximum rectangular cutting (2:1)	71.4" x 35.7"	53.4" x26.7"
Table diameter	62"	46"
Table rotation speed (Infinitely variable)	0.5 - 3RPM	0.5 - 3RPM
Spindle speed	9000RPM	9000RPM
Spindle diameter	1",30mm,11/4"	1",30MM 11/4"
(interchangeable)	(One dia funished)	(One dia funished)
Cutter size	100mm	100mm
Follower roller diameter	100mm	100mm
Table drive motor	2HP x 1	2HP x 1
Spindle drive motor	10HP x 2	10HP x 2
Net weight	3050kgs	2350kgs
Gross weight	3850kgs	2850kgs
Packing size	108" x 89" x 77"	91" x 76" x 81"

HEAVY DUTY AUTOMATIC COPYSHAPERS
