PC-D: Woodworking Drilling Machine

MULTIPLE SPINDLE BORING MACHINE

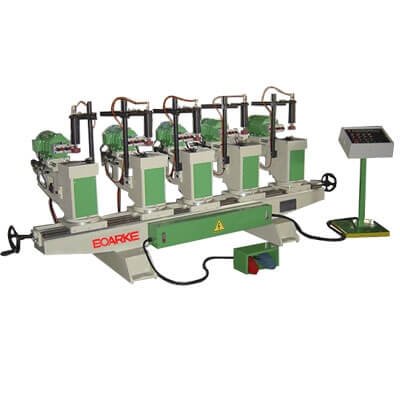

PC-D211 Multiple Spindle Boring Machine

PC-D211 Multiple Spindle Boring Machine

PC-D211 Multiple Spindle Boring Machine
PC-D211
Inquiry
FEATURES:
  • Constructed with 2 to 6 boring heads offering various boring on both ends and the side.
  • Each boring unit can be swiveled for angular boring.
MODELPC-D211PC-D213PC-D214PC-D215
Spindle motor 2HP*2 2HP*4 2HP*5 2HP*6
Spindl 50HZ-3000
60HZ-3500		 50HZ-3000
60HZ-3500		 50HZ-3000
60HZ-3500		 50HZ-3000
60HZ-3500
Head in line max. distance between drills 2600mm 2600mm 3000mm 3000mm
Head in line max. distance between drills 280mm 280mm 280mm 280mm
Head at parallel max. distance between drills 2100mm 2100mm 2500mm 2500mm
Head at parallel max. distance between drills 300mm 300mm 300mm 300mm
Max. boring depth 80mm 80mm 80mm 80mm
Stroke travel 100mm 100mm 100mm 100mm
Clamp cylinder 2 4 5 6
Max. spindle to table distance 60mm 60mm 60mm 60mm
Air pressure 5.5kg/cm² 5.5kg/cm² 5.5kg/cm² 5.5kg/cm²
Machine size 3100*750*960 3100*1000*960 3500*1000*960 3500*1000*960
Packing size 2820*830*1480 2820*1080*1480 3300*1240*1480 3300*1080*148/0
N.W. 640kg 900kg 1070kg 1200kg
G.W. 890kg 1150kg 1350kg 1480kg
