PC-A: Band Saw Machine

Vertical Band Saw

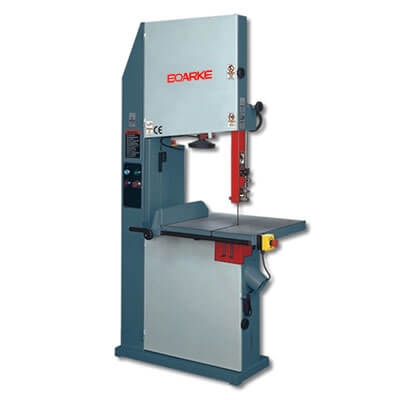

PC-A600 Vertical Band Saw Machine

PC-A600 Vertical Band Saw Machine

PC-A600 Vertical Band Saw Machine
PC-A600
Product Description
proimages/pro/Woodworking_Machine/A600a.jpg
proimages/pro/Woodworking_Machine/A600b.jpg
proimages/pro/Woodworking_Machine/A600c.jpg
The saw wheels on models of PC-A600, A601, and A602 are Laminated with rubber for accurate blade tracking, a positive grip and maximum blade durability.
proimages/pro/Woodworking_Machine/A600d.jpg

Convenient side guide adjustment is made by a micrometric adjustment knob for use with narrow blades.

Inquiry
FEATURES:
  • A streamlined appearance, simple operation, fast and stable cutting, the most economical use of saw blades, strong cutting force, and can cut irregular shapes.
ModelPC-A600PC-A601PC-A602
Saw Wheel Diameter 500mm(20") 600mm(24") 700mm(28")
Table 680*520mm(26-3/4"*20-1/2") 800*605mm(31-1/2"*23-7/8") 1000*700mm(39-3/8"*27-5/8")
Table Tilting 0°~45° 0°~45° 0°~45°
Throat Capacity 470mm(18-3/4 ") 580mm(22-7/8 ") 678mm(26-3/4")
Height Capacity 300mm(11-7/8") 350mm(13-3/4") 420mm(16-1/2")
Width Of Wheel 35mm 35mm 40mm
Blade Speed 850RPM(4450 F.P.M) 710RPM(4458 F.P.M) 680RPM(4980 F.P.M)
Blade Length 3969~3999mm (151-1/4"~157-1/2") 4410~4480mm (176-5/8"~176-3/8") 5130~5180mm (202"~204")
Blade Width 6.3mm~32mm(1/4"~1-1/4") 6.3mm~32mm(1/4"~1-1/4") 6.3mm~32mm(1/4"~1-1/4")
Dust Hood Diameter Ø4"*1 Ø4"*1 Ø4"*1
Motor 2HP 3HP 5PH
Net Weight 280kg 315kg 450kg
Gross Weight 350kg 450kg 600kg
Machines Size(L*W*H) 970*700*1880mm 1060*800*2070mm 1330*900*2290mm
Packing Size(L*W*H) 1970*580*1010mm 2160*630*1100mm 2380*650*1210mm
