Wood Sanding Machinery

Top and Bottom Wide Belt Sander

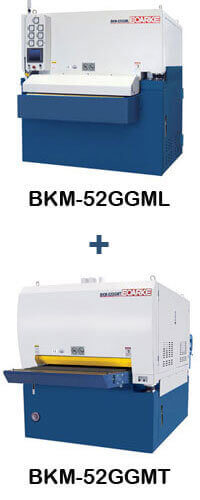

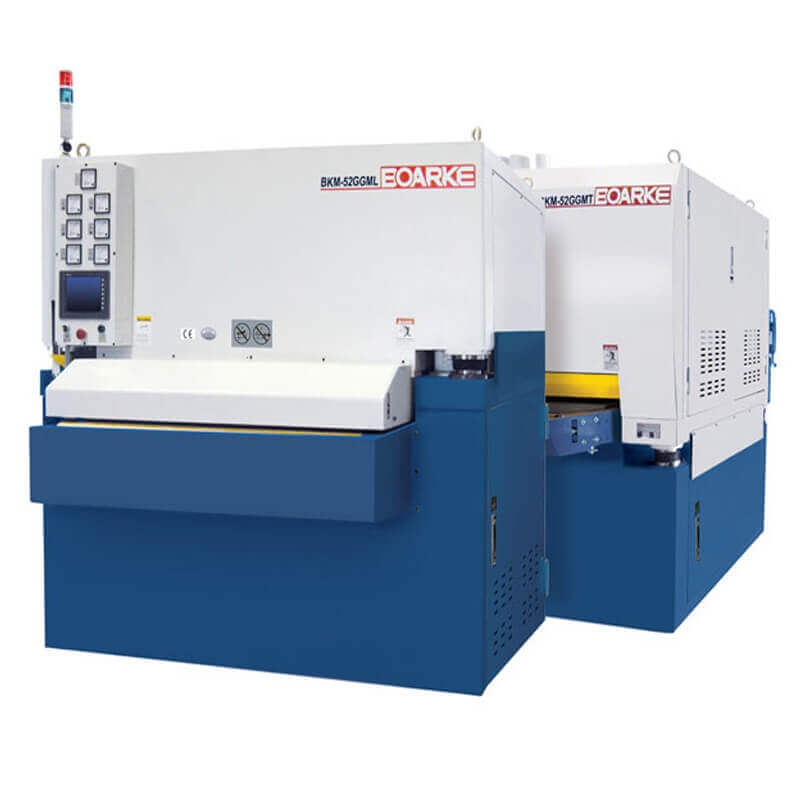

BKM-52GGML+BKM-52GGMT Top and Bottom Sander

BKM-52GGML+BKM-52GGMT Top and Bottom Sander

BKM-52GGML+BKM-52GGMT Top and Bottom Sander
sander-7
Product Description

proimages/pro/Sander_Machine/7-2.jpg

Inquiry
FEATURES:

Boarke top and bottom sander is an innovative solution designed to optimize sanding processes, simultaneously addressing both precision and productivity requirements in manufacturing. Our top and bottom sander seamlessly connects top and bottom sanding machines, enabling simultaneous sanding on both sides. The synchronized sanding capability reduces the need for separate processes, optimizing workflow and minimizing operational complexities. This integration aids in achieving a more efficient production cycle.


Link one bottom sanding machine and one top sanding machine together to get either the high precision or the high productivity.
MODELBKM-25GML(T)BKM-25GGML(T)BKM-37GML(T)BKM-37GGML(T)BKM-52GML(T)BKM-52GGML(T)
Max. working width 24" 24" 36" 36" 50" 50"
Max. working thickness 6" 6" 6" 6" 6" 6"
Main motor (standard) 15、10HP 20、15、10HP 20、15HP 25、20、15HP 30、20HP 30、25、20HP
Main motor (optional) 20、15HP 25、20、15HP 25、20HP 30、25、20HP 40、30HP 40、30、25HP
Feed motor 2HP 3HP 2HP 3HP 3HP 5HP
Table hoist motor ½HP ½HP ½HP ½HP ½HP 1HP
Feed speed selectable range (m/min) 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5% 6-25±5%
Sanding belt size 25"x75" 25"x75" 37"x75" 37"x75" 51"x75" 51"x75"
Working pressure (kg/cm²) 6 6 6 6 6 6
Net weight (kgs) 2400 3100 2800 3750 3250 4320
Gross weight (kgs) 2650 3350 3050 3950 3650 4950
Machine size (LxWxH) cm 197x120x200 230x120x200 197x155x200 243x185x203 237x210x203 279x221x206
Packing size (LxWxH) cm 224x158x224 236x125x224 202x160x224 253x215x225 243x216x225 282x227x227
